PC wire drawing machine
Specifications
- Brand
- 1997
- Origin
- china
- Price Term
- FOB
PC wire drawing machine is a Casting Services product. Key specs — Brand: 1997; Origin: china; Price Term: FOB.
Product Description
Certification:China National standard

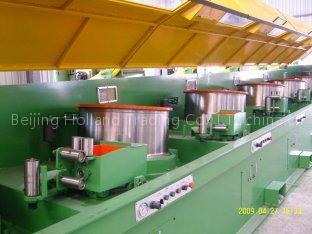

LZ 8/560 Steel Wire Drawing Machine
Ⅰ. Main parameter sheet:
Seq. | Item | Unit | Parameter |
1 | Mode | LZ8/560 | |
2 | Drawing method | Tilted drawing blocks | |
3 | Number of drawing block | piece | 8 |
4 | Diameter of drawing block | mm | 560 |
5 | Speed control method | A.C. Frequency inverter motor | |
6 | Power of drawing motor | KW | The first block is 22KW, others are 18.5KW (tilted) |
7 | Max. Inlet wire diameter | mm | Φ5.5mm |
8 | Min. Final product diameter | mm | Φ2.0mm |
9 | Carbon percentage | % | 0.1% |
10 | Mn/Si percentage | High Mn (1.45%)- High Si (0.8%) | |
11 | Max. Machine design speed | m/s | 20 |
12 | Control system | All digital | |
13 | Logic control system | PLC( SIEMENS) | |
14 | Cooling system of blocks and dies | Water and ring wind cooling system for blocks，Water cooling system for dies | |
15 | Required cooling water supply | 0.2～0.3MPa | |
16 | Required air supply | 0.6MPa | |
17 | Time span of machine stop | second | Normal≤50s quick≤15s; emergency≤4s (Buyer can set the data) |
Ⅱ. Main description:
1. Illuminating system inside the drawing room. Safety cover with rubber sealed edge.
2. A inside dust-collection pipe net is included connecting the branch flanges. Buyer needs to add one set of dust-exhausting system (buyer's scope) to an outlet connection flange.
3. All drawing blocks are made of alloy steel material with high wear-resistance treatment (Tungsten Carbide). Hard treatment: 200mm height of working surface. Surface hardness: HRC 60-62, roughness 0.8um
4. Harden-Surface Gearbox
5. Grade 1 narrow “V†belt transmission system, the motor power transmission can reach 95%.
Ⅲ. Control System:
1. Main components:
Seq. | Item | Brand | |
1 | Inverter | ABB |
