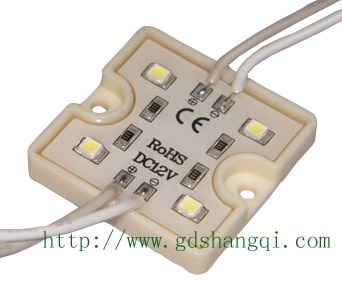

PC Shell 4leds 3528 SMD Module (3636)

PC Shell 4leds 3528 SMD Module (3636) Input Voltage:DC12V Warranty:2 years Factory direct Power:0.6W View angle:120° Features: Superbright SMD top LED & viewing angle, high brightness output, no spot and shadow. Colors can be chosen as R/G/B/Y/W, the lumen is 8/16/6/8/24lm. Low power consumption & operating voltage, safe and energy-saving.

With IP65 protection rating. Solid-state, high shock or vibration resistant, long lifetime, more than 50000 hours. Easy installation with mounting holes and 3M adhesive tape on the back. Application: Widely used in household lighting. Backlighting for advertisement, signboard and billboard. Backlighting for light box. Signal lamp for channel.

Direction: The module is 20pcs/string,50mA current per string. User can put several strings in parallel connection, each string running a loop. Lest the nonuniform color caused by the voltage drop, the cable section of main power supply should not less than 2.5mm2. The module number of each string is customizable or a single use.

Keep it in a well-ventilated environment, good for heat dissipation. When connecting, yellow wire to connect power “+”, white wire to connect power “-”. Don't reverse. Banned charged work. Suggested to use brand switching power supply with safety certificate.(with short circuit, over voltage, current protection function)
