Listing ID#10009194
ModelSPC10
CategoryFiber Optic Equipment

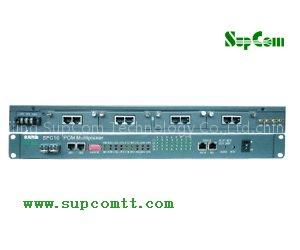

PCM Multiplexer
Specifications
- Brand
- SupCom
- Origin
- China
- Price Term
- FOB
Quick answer
PCM Multiplexer is a Fiber Optic Equipment product. Key specs — Brand: SupCom; Origin: China; Price Term: FOB.
Product Description
| Features | 　 |
| 1 | Reliable large-scale integrated chips |
| 2 | Artificial intelligence panel setting interface |
| 3 | Clock mode:master clock,E1(optional function)clock,subscriber clock.etc. |
| 4 | Height 1U(6U),width 19-inch,fixed arbitrarily more than 20 kinds of interface cards |
| 5 | 64kbps-rich user interface:FXO,FXS,EM2/4-wire audio interface, Ethernet interface, |
| 　 | V.35 data interface,hot line interface, magnetic interface, 2100Hz carrier magnetic |
| 　 | card,V.24/V.28 data interface(RS232/RS485), and V.24 interface with data and clock |
| 　 | synchronous transmission,ITU 64kbps bi-directional data interface(G703), baseband |
| 　 | interrupt interface,No1 signaling and phone exchange cards |
| 6 | Enhanced function and flexibility in the application: it can provide 1 ~ 8 |
| 　 | transmission directions of E1 line:built-in cross-connect matrix facilitate the |
| 　 | complex chain net and star-shaped net |
| 7 | Consummate function control switch and the alarm indicator of sound and light on |
| 　 | the panel:When the optical inetrface or E1 interfaces alarm occurs when the alarm of the sound |
| 　 | and light can be issued |
| 8 | Powerful network management platform:simple and comprehensive network management |
| 　 | features, you can configure the device inquiries, fault statistics and management |
| 　 | online . Business of users will have real-time online distribution network, broadband |
| 　 | of users can be adjusted at any time |
| 9 | Network management interfac:RS-232 serial interface and 10/100Base-T Ethernet |
| 10 | Flexible signaling changes with the road pattern, easy to be on the pass with other |
| 　 | manufacturers, or single-side access |
| 11 | With Caller ID and polarity reversal signal |
| 12 | With the optical interface transmission,the line speed of Ethernet interface can reach |
| 　 | fast, providing transparent transmission of E1 interface and user-friendly to expand |
| 13 | ADM features a powerful and flexible distribution of time slots in 2M |
| 14 | Power:AC and DC optional |
| 15 | Link side optoelectrical inetrface switching(E1/optic interface) can be freely finished |
| 　 | by switch, unneccesary to change equipment |
| 16 | The transmission of single fiber/dual fiber,single /multi-mode, the modes of short-distance |
| 　 | /long-distance(20 KM/40 KM/120 KM) can be flexibly switched, no need to replace devices |
| 17 | The functional card is designed in modules,and interfaces can be plugged or pulled into |
| 　 | different combinations |
| 　 | Eg:uplink E1interface:8 channel FXO/FXS + 4 channel Ethernet/100M+1v.35(N*64Kbps) |
| 18 | Optical interface supports 1+1 double optic interfaces protection mode(in which one is backup) |
| 　 | compatible with single mode, no need to replace devices;optic modules supports hot swap |
| 19 | SDH/PDH/E1, small in size,compact in design, can provide a variety of audio or data transmission |
| 　 | using the switches on the front board,uplink interface can be changed freely from |
| 　 | E1(G.703) to PDH or SDH optical interface,no need to change devices |
| 20 | All the interfaces have the function of protection against lightening strike |
| 21 | Greatly facilitate the daily work of installation and maintenance troubles |
