PCI Bus Optical Ethernet Adapter

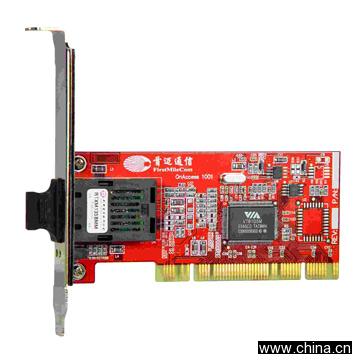

Model No.:OnAccess1001 Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:OnAccess1001 PCI Bus optical Ethernet adapter is designed to operate at 100Mbps and provide a network throughput of 200Mbps in full-duplex mode.

It offers a rangeof options, such as fiber / connector type and operating wavelength / distance,to meet the requirement of various applications.Features:1) Plug and play installation2) Complies with the IEEE 802.3u 100Base-FX / IEEE 802.3ah 100Base-LX10 / -BX10 Ethernet standard3) Standard optical fiber connector and cable type options4) Full duplex or half-duplex operation5) PCI bus master direct memory access for high throughput and low CPU utilization6) IEEE 802.3x flow control enabled with full duplex operation, allowing enhancedoperation when directly connected to a switch7) IEEE 802.1Q/VLAN tagging supported8) VLAN registration using IEEE802.1Q GVRP standard9) IEEE 802.1p tagging supported10) IP Multicast packet filtering reduces CPU utilization and conserves network bandwidth11) Large 2KB Tx, 2KB Rx FIFO buffers synchronize transmissions and buffer datato help prevent packet loss12) Two LED indicators: Link/RxAct, Power/TxAct13) Drivers for all leading network operating systemsSoftware drivers:1) Microsoft Windows 95, 98, 98 SE2) Microsoft Windows 20003) Microsoft Windows XP4) Microsoft NT 3.51 / 4.05) Microsoft Windows for Workgroups 3.116) Microsoft Windows CE.

NET 4.0 / 4.27) Microsoft Client for DOS8) NDIS 2 driver9) NDIS 3 driver10) NDIS 4 driver11) NDIS 5 driver12) Novell NetWare Client for DOS13) Novell NetWare Client 32 for DOS14) Novell NetWare Server 3.12, 3.2, 4.11, 4.2, 5.0, 5.115) ODI for DOS driver16) 32 bit ODI LAN driver17) NCSA18) FTP PC / TCP19) SCO Open Server 5.0.x20) RPL Boot ROM21) PXE Boot ROM22) DMI DriverSpecifications:1) Optical interface: optical Ethernet 100Base-FXa) Single single-mode fiber, single wavelength 1,310nm, single SC / PC connector,operating distance 15kmb) Single single-mode fiber, dual wavelength 1,310 / 1,550nm, single SC / PCconnector, operating distance 40kmc) Dual single-mode fiber, single wavelength 1310nm or 1,550nm, dual SC / PCconnectors, operating distance 60kmd) Dual multimode fiber, single wavelength: 1,310nm, dual SC / PC connectors,operating distance 2km2) Host interface: PCI 2.1 Bus (Bus Master)3) Physical dimensions: 12.0 x 5.3cm4) Environment:a) Storage: -25 ~ 55°C (-13 ~ 131° F)b) Operating: 0 ~ 50°C (32 ~ 122°F)c) Humidity: 10% to 90% non-condensingd) Power consumption: 2W max.border=0>
