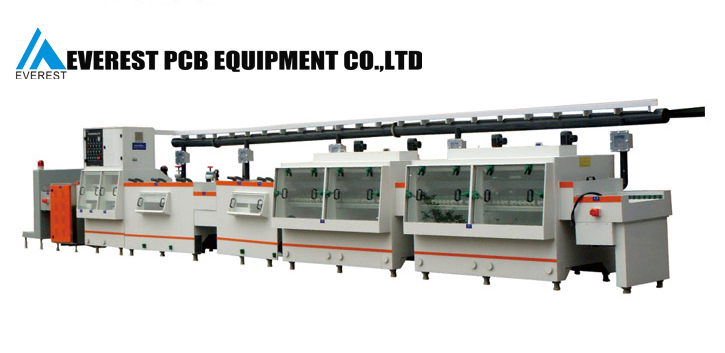

PCB etching and stripping machine
Specifications
- Origin
- China
- Certifications
- CE, ISO9001
- MOQ
- 1 set
- Price Term
- FOB
- Payment Term
- T/T,L/C
- Supply Ability
- 10 set for available
- Delivery Time
- 20 days
- Loading Ports
- Tianjin
PCB etching and stripping machine is a Machinery Processing Services product. Key specs — Origin: China; Certifications: CE, ISO9001; MOQ: 1 set; Price Term: FOB.
Product Description
PCB Etching and Stripping line
Main parameters: Dimension: 12500mm×2000mm×1980mm Working height: 900mm Working width: 650mm Wheelbase: 60mm Working speed: 0.1～5m/mm Supply voltage: Three phase four wire 380V/50Hz Total power: 86KW Max work piece: 610mm×460mm Min work piece: 120mm×80mm Working thickness: 0.1～3.2mm Water consumption: 24～36 L/min
Working process: Feeding → Etching →Etching2 → Recycle water washing → Running water washing → Blot up → Absorb →Stripping → Recycle water washing → Running water washing →Blot up →Cool drying → Discharge
Features: 1.This line was included etching and stripping two parts. 2.The etching accurate of line width can reach 0.04mm. 3.Various wheelbase of 28mm 35mm 48mm 60mm 70mm are satisfy for your different requirement, Special arrangement are very fit for processing thin plate. 4.Spraying uniformly by special design nozzles, displayed and controlled individually.
5.The medicine water can circulate and to be filtered automatically. 6.The control cabinet was above on the equipment, maintenance more convenience and security. 7..Imported frequency conversion device and pump. 8.The concentration of air exhaust and drainage, make appearance more clean and easy to installation.
9.Appearance is adopt pp materials ,have good weather-resist and water resist. 10.It’s very suitable for mass production, more efficiency and reduced cost.
