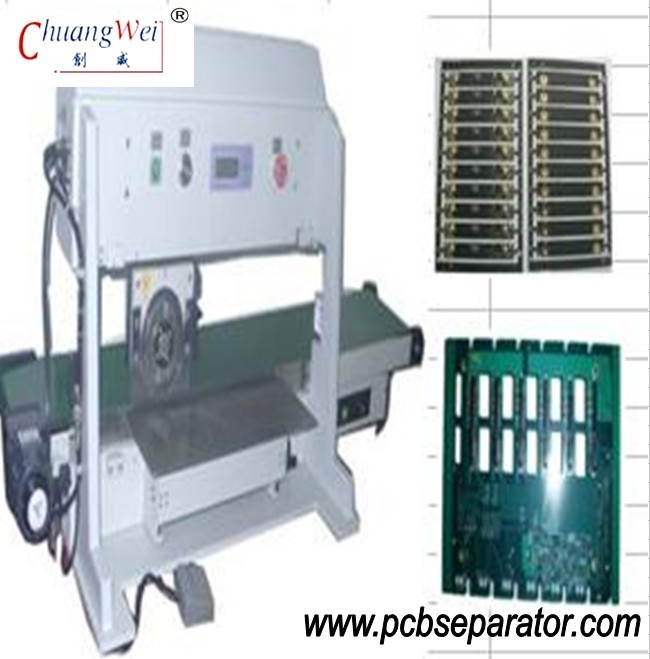

PCB depanel machine

PCB depanel machine

1.Belt transporting

2.Operator foolproof

3.Infrared protection

4.Calibration Blade Setting

Specification

Model CWV-2A

PCB Cutting Length (mm) 460/600/1000/1500

Cutting Speed (mm/s) 100/200/300/500

Cutting Thickness (mm) 0.6~3.5

Conveyor Length (mm) 1540

Weight (Kg) 55

Power Supply (V) 110/220

Blade Hardness (HB) 540~567

Blade Hardness (HRC) 60~63

Blade working life for metal (Year) 0.5

Blade working life for PCB (Year) 1

Delivery (Day) 1

Min. Order (Set) 1

Guarantee (Year) 1

Ability (Set) 1000

Detailed Product Description

1. For electronics, cell phones, computers, PCB, LED.

2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated

to high strength cutting, and excellent toughness, able to cut metal board !!!!!!

Technical characteristics

1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

Feature

1.Round knife, manually cutting against lower linear knife, for reduced stress

2.Separate pre-scored PCB assembly without stress on either PCB or component

3.One touch programming of cut length with digital display

4.Separating speed is adjusted by a rotary knob

5.Handle Intermittent scoring or cut-outs

6.Board with projected component can be cut precisely

7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

8.Optional PCB conveyor belt to remove finished board

9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out

Our Advantage

1.CWVC-1 Pcb depanelizer original manufacturers, price concessions

2.Promise day technical support services

3.Limit the handling of complaints, half an hour back to customers

4.Depanel Experts, the provision of professional PCB sub-programme

5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
