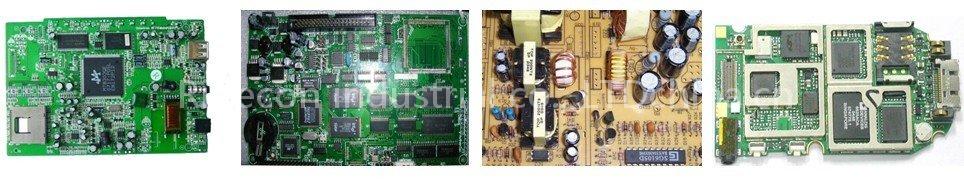

PCB assembly OEM

PCB and PCB assembly assembly,pcb ,components procure,pcb test
2.Competetive price and good quality
trustful sourcing from China

pcb and pcb assembly:

One stop service from PCB manufacture, components purchasing, test, packing, PCB assemble, pcb design . pcb printed,The smart choice for you and the trusted source at the center of your deal.

-----------------------------------------------------------------------------------------------------

A. Reference-Our Production Capability for Rigid PCB:

1 Layer: 1-30

2 Board finished thickness:0.21mm-7.0mm

3 Material: FR-4,CEM-1,CEM-3,High TG,FR4 halogen Free,Rogers

4 Max.finished board size:580*900mm

5 Min.drilled hole size:3mil(0.075mm)

6 width:3mil(0.075mm)

spacing:3mil(0.075mm)

7 Surface finish/treatment: HASL/HASL lead free,HAL,Chemical tin,Chemical Gold,Immersion Silver/Gold,OSP, Gold plating.

8 Copper thickness:0.5-3.0oz

9 Solder mask color: Green/yellow/black/white/red/blue

10 Copper thickness in hole: >25.0 um(>1mil)

11 Inner packing: Vaccum packing/Plastic bag

Outer packing: Standard carton packing

12 Shape tolerance:±0.13

Hole tolerance:PTH: ±0.076 NPTH: ±0.05

13 Cerificate: UL.ISO9001.ISO14001.SGS.ROHS.

14 Special requirements:Buried and blind vias+Controlled impedance+BGA

15 Profilling:Punching.Routing.V-CUT.Beveling

16 Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products.

B.Needed

1.Gerber file and BOM

2.Clear photos of pcba or pcba sample deliver to us

test method
