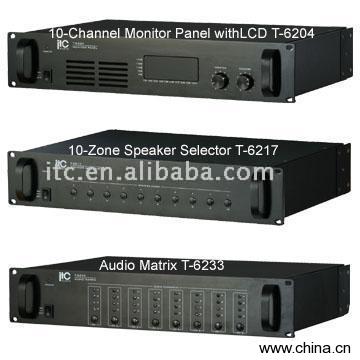

PA Audio Distribution System

Model No.:T-6204, T-6217, T-6233 Product

Origin:China Brand

Name:ITC Audio

Price Terms:FOB Guangzhou / Shenzhen / Hong Kong

Payment Terms:T/T

Certification:CCC, ISO9001, CE, RoHS Description:

Features:T-6204 10-channel monitor panel with LCD1) 10 amplifier/speaker channels, inputs are selected by control knob for audibleand visual monitoring2) Graphic LCD display provides level of each channel3) Built-in full-range monitor speaker with volume control4)

Power supply: 220V/50Hz5) Power consumption: 30W6)

Dimensions: 484 x 350 x 88mm7) N.W.: 10kgT-6217 10-zone speaker selector1) Microcomputer control, light touch buttons2) 5 inputs - 4 BGM programs and 1 priority for paging and emergency, 10 speaker zone outputs3) LED indicators show each speaker zone's status-light color changes from greento red when paging or emergency alarms4) Stores settings in case of power off, and works automatic when power is on5)

Power supply: 220V / 50Hz6) Power consumption: 35W7)

Dimensions: 484 x 350 x 88mm8) N.W.: 5.5kgT-6233 audio matrix1) Microcomputer control, stores the settings in case of power off, and work automatically when power on2) 4 inputs for audio source, 8 audio signal outputs, expandable to 8 units by using address feature3) COM port allows control by computer or can be manually controlled4)

Power supply: 220V / 50Hz5) Power consumption: 15W6)

Dimensions: 484 x 350 x 88mm7) N.W.: 5kg
