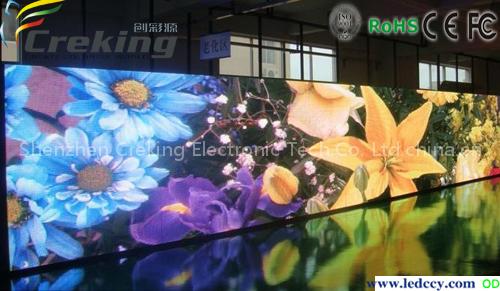

P6 Outdoor LED video Screens is a LED Modules product. Key specs — Origin: China(Mainland).
Product Description
Pixel composition 1R1PG1PB
LED encapsulation SMD3528
LED in pixels SMD 3 in 1
Module Resolution 32*16
Module Size 192*96mm
Cabinet Resolution 128*96
Cabinet Size 768*576mm
Pixel density 27778dots/m2
Best viewing distance 6m
Brightness ≥1400cd/m2
Driving method 1/8 scan, constant current
Viewing Angle (H/V): 120 degrees/70 degrees
Frame frequency ≥60Hz/s
Refresh rate ≥300Hz/s
Grey Scale/Display colors ≥16.7M(synchronized)
Power consumption 1400W/m2(Max.), 700W/m2(Average)
Working voltage 220±10% or 110 ± 10%
Weight of standard cabinet 23kg
Operating Temperature: -20Co—60Co
Operating Humidity: 10%—95%RH
Lifespan ≥ 100000 hours
MTBF ≥ 5000 hours
Malfunction dot rateLess than 0.0001
Transmission distanceLAN cable ≤ 100m, optic fiber transmission: MMF ≤500m, SMF ≤15km
