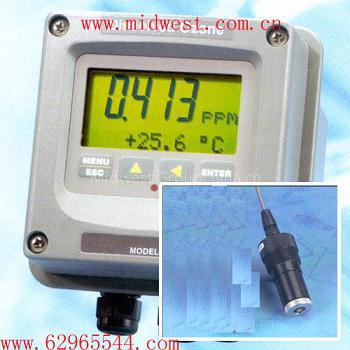

Ozone in water-line detector

Ozone in water-line detector Model: BD52-Q45H-64 Controller features: Range: standard detector scale range of programmable 0-2,0-20,0-200 PPM.

Loop power supply, AC power, battery power supply type: Loop power supply provides a single solution-based ozone measurements; AC power type can provide PID, relay; battery power to provide measurement-based data storage capabilities. LCD display: The first line shows the dissolved ozone, temperature, or other information.

PID control output: the standard PI D control output. Dual measurement function: Optional accessories AC power type "PH Sensor", to achieve both dissolved ozone and PH measurement and output. Analog Output: Dual analog output can be set to dissolve the ozone and temperature, or ozone, and PH value of the output.

Two Alarm Relays: AC type provides two alarm relays, programmable set to "control mode" or "alarm mode." Shell: NEMA4X (IP66) protection mount, panel-mounted, pipe installation. Note: Options: PH probe, providing a second line shows the PH, two-loop output Function and PH display.

To install the pipeline, such as stents need to reprovision Parameters: The scope of the main parameters Manually select the measurement range 0.000-200.0ppb 0.0-2.000ppm 0.00-20.00ppm 0.00-200.0ppm Accuracy: 0.5% of the selected range or 0.02ppm Repeatability: 0.3% of the selected range or 0.01ppm Sensitivity: 0.05% of selected range Non-linearity: 0.1% of selected range Start Time: 3s Effective voltage range of ± 0.05% Instrument response time of 60s
