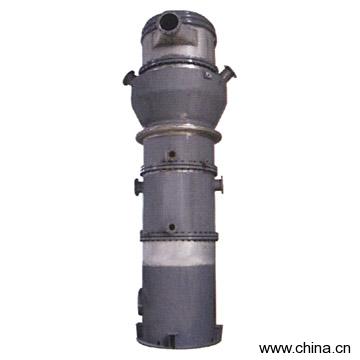

Oxygenator is a Chemical Machine Parts product. Key specs — Origin: China (Mainland).
Product Description
Model No.: Product Origin:China Brand Name:Hengmao Price Terms:FOB, CIF, CFR Payment Terms:L/C, T/T Certification:ISO9001 Description:Product Name: OxygenatorPlace of Origin: ChinaThe silver-catalysed formaldehyde processThe silver-catalysed process produces formaldehyde by reaction of methanol vapour and air on a silver catalyst.
Oxidation and dehydrogenation of methanol are the basic mechanism of the silver-catalysed route.Methanol is vaporised in an evaporator and the vapours mixed with air will go through the reactor containing a bed of pure silver in a granular crystalline reactor is supported above a steam boiler so that the reaction products passthrough the boiler tubes before passing to further cooling stages and produce steam(heating transfer between the reacted gases and water).The reacted gases containing formaldehyde, methanol and water are condensed and cooled in passing to a circulating absorber column followed by a first methanolscrubbing system and in a second step a water scrubbing system for the effluent gases.
The aqueous formaldehyde-methanol is removed from the absorber to a distillation column to separate methanol and aqueous formaldehyde.
The methanol is returned to the process as reaction feed and the aqueous formaldehyde up to 55% formaldehyde with 1 % or less of methanol is stored into process vent gas (after scrubbing) which contains approximately 20 % hydrogenand small amounts of methanol, formaldehyde, and methyl formiate are burned ina boiler to produce developed a 10~80kt/a formaldehyde equipment is characterized by its advancedtechnological process (recycled exhaust), advanced automation (DCS control system),high safety and reliable, low consumption in raw material and energy, reasonablestructure (new structural oxidizing equipment) long performance life, highefficiency and other options.
All the technical indexes have reached the advancedlevels at home and abroad.Specifications: 1) Concentration of formaldehyde: 37~50%2) Content of formaldehyde: ≤ 0.8% 3) Content of formic acid: ≤ 0.005% 4) Raw material consumption: ≤ 0.445T/T5) Energy consumption: ≤ 25kWh/T
