Oriental Rugs Laser Cutting Machine is a Other Laser Equipment product. Key specs — Origin: China.
Product Description

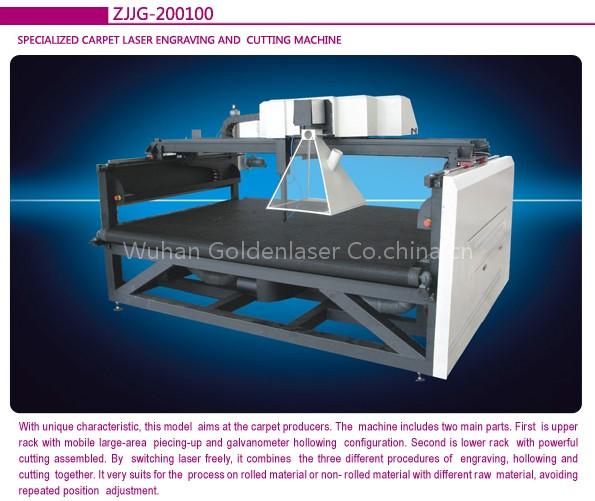

ZJJG-200100 Laser Engraving and Cutting Machine for CarpetWe are a China listed manufacturer of laser equipment. Product Features 1.
With unique characteristic,this model aims at the carpet machine includes two main parts.First is upper rack with mobile large-area piecing-up and galvanometer hollowing configuration.Second is lower rack with powerful cutting assembled. 2. By switching laser freely,it combines the three different procedures of engraving,hollowing and cutting together. 3.
It very suits for the process on rolled material or non-rolled material with different raw material,avoiding repeated position adjustment.
Application Field Suitable for Non Woven, polypropylene fiber, blending, Composite artificial leather etc carpets materials Wall to wall Carpet, Door mats, Automobile or aircraft special Carpet, Hand tufted Carpet, Carpet Tile etc
Technical Parameter Laser type
Imported CO2 RF laser tube
Laser power
70W, 100W, 150W Optional
Working area
2000mm x 1000mm Galvo
Cutting (No-load) speed
0-48000mm/min
Repeating location
≤0.01mm
Cooling system
Professional laser water chiller(if air-cooling,without it)
Moving system
Servo system,5 inch display screen,high precision CNC control system
Laser power adjustment
Following laser power adjustment
Power supply
AC220V 5%/50Hz
Format support
AI, BMP, PLT, DXF, DST, etc.
Standard collocation
Upper exhaust fans,assisted air compressor
Select collocation
Outside exhaust fans
*Working area and laser power can be customized according to requirement.*
Advantages of GOLDEN LASER Series: *Efficient and smart nesting technology *Carpet large format 3d engraving technology *Super long material continuous cutting *Cutting control technology with digital movable multi-head for toys industry *Leading pattern digitizing technology *Excellent feeding and winding system
---If you are interested in our products, please contact my email(limu at goldenlaser.org) directly for quotation and offersheet. ---Please kindly let us know which industry you are in and what kind of materials you want to cut or process so we can recommend suitable model to you.
