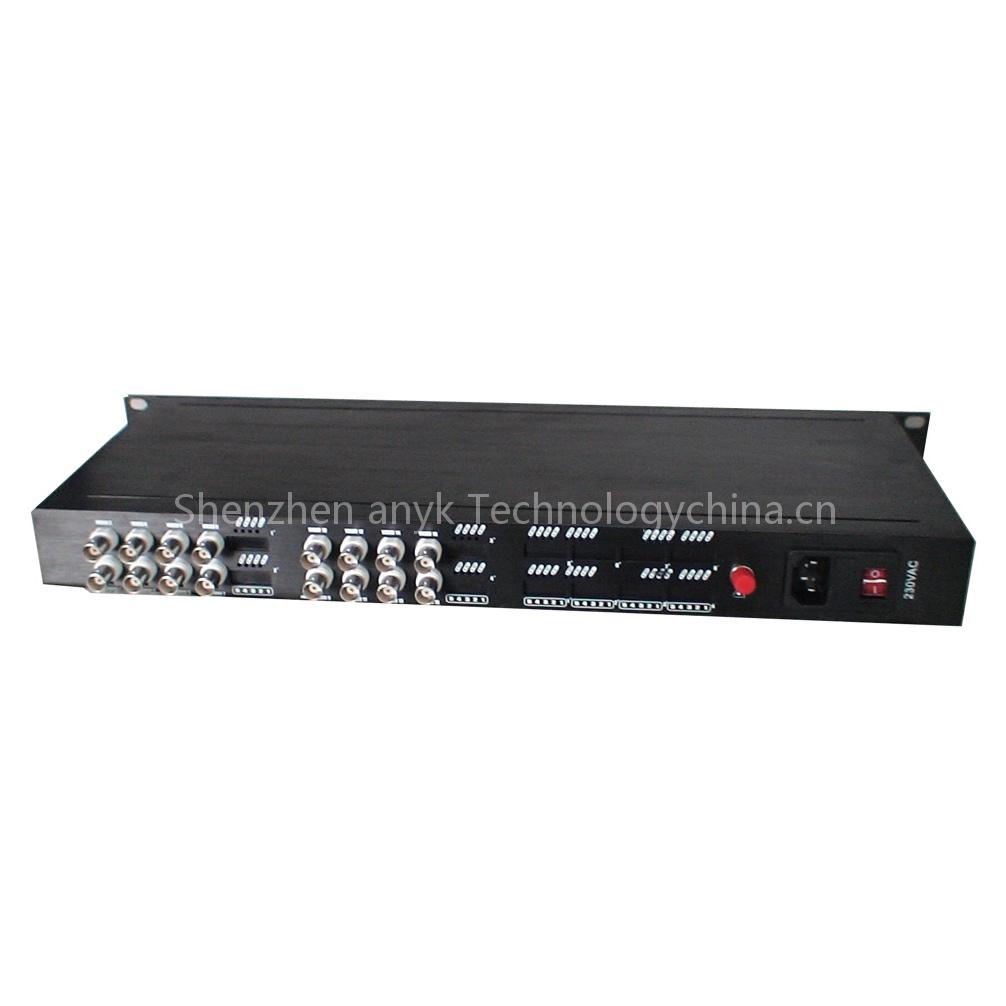

Optical video converter for 16 videos

1,up to 4 KV surge voltage/current damages protection (lightning protection).

2, Industrial level design and SMT technology 3, Full digital fiber optic communication platform and different business flexibly allocated at the same platform 4, Support standalone and rack mount for centralized management with slide-in module this two outside looking 5, Proprietary intellectual property rights and large scale specific integrated circuit 6, Single core fiber for default parameter and dual core fiber is optional 7, Support PAL/NTSC/SECAM format and transmission quality at broadcast level 8, Support two direction asynchronous data (positive and opposite direction) 9, Support 1 channel asynchronous data and speed exceed 115.200Kbps 10, The asynchronous data can be RS232, RS485, RS422, and Manchester Code Parameters Video Parameters Impedance input/output: 75Ω (non equilibrium) Voltage input/output: 1.0Vp-p Type Voltage range: 0.6-2.0Vp-p Type Differential gain(10%-90% APL): 70dB(weighting)(10Bit) Physical interface: BNC port Data Parameters Data format: RS232, RS422, RS485, Manchester Code, BIPHASE, etc.

Rate: 0-300kbps Error rate: 10 ∧ -9 Physical interface: standard PHOENIX wire connecting terminal Optics Parameters Wavelength: 1310nm&1470nm-1610nm Fiber: 0/125U MMF, 62.5/125U MMF, 9/125 SMF Typical fiber output power: 8~3d Bm Typical receiving sensitivity:30d Bm Fiber interface: FC, ST, and SC (optional) Default Parameters Input Voltage: 110V~240V AC adaptive Operation Voltage: DC 5V (or DC 12V for option) Operation Humidity: 0~95% no condensation Working Tep.: -10℃~70℃ Storage Tep.:-40℃~85℃
