Optical Sensor is a Sensors product. Key specs — Origin: China (Mainland).
Product Description

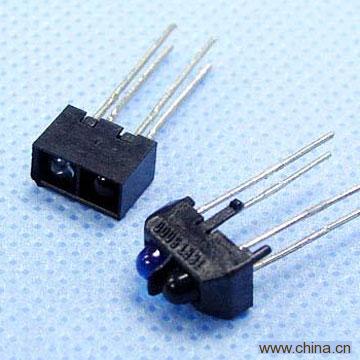

Model No.:GP15013 & GP15003 Product Origin:China Brand Name:guangpu Price Terms:FOB Xiamen Payment Terms: Certification:ISO9001 Description:Product Name: Optical SensorModel Number: GP15013 & GP15003Place of Origin: ChinaFeatures: 1) Application: optical switch, printing machine, copy machine2) Feature: high intensity, anti visible light interference3) Opto-electrical characteristics:a) Forward voltage (IF=20mA): max.
Vf=1.15V TYPb) Reverse current (VR=5V): 10mA max.c) Collector current (VCE=5V, I=20mA): min. 500mA4) Collector-emitter voltage (IC=2mA, Ee=1 mW/cm2): max. 0.4V5) Rise time/fall time (VCE=5V, IC=1mA, R=1kΩ): 15/15mS
