Listing ID#10136742
ModelKL-320
CategoryAuto Meter

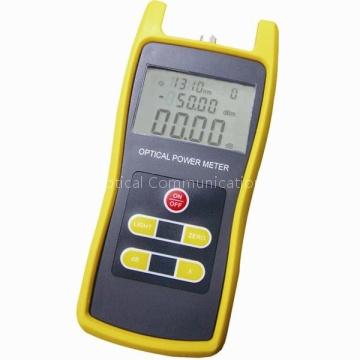

Optical Power Meter
Specifications
- Brand
- JILONG
- Origin
- CHINA
- Price Term
- FOB
Quick answer
Optical Power Meter is a Auto Meter product. Key specs — Brand: JILONG; Origin: CHINA; Price Term: FOB.
Product Description
Feature
Backlight LCD display
To display optical power in mw,dB and dBm simultaneously
Absolute and relative power measurement
User self recalibration function
Auto-off function
Specifications |
Type | KL-320 |
Wavelength | 800 ~1700 nm |
Detector | InGaAs |
Measurement Range | -50~+26 dBm |
Uncertainty | ±5% (-10 dBm,20±3℃) |
Calibrated Wavelength | 850,980,1300,1310,1490,1550 nm |
Resolution | 0.01 dBm |
Connector | FC or Universal 2.5mm adaptor |
Power Supply | Alkaline Battery(3 AA 1.5V) |
Battery Operating Time | 240 h |
Operating Temperatrue | -10~+60 ℃ |
Storage Temperatrue | -25~+70 ℃ |
Relative Humidity | 0~95% (non-condensing) |
Dimension | 152mm(W)×74 mm(D)×26 mm(H) |
Weight | 200 g |
