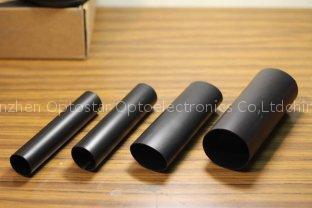

Optical Passive Heat Shrink Tube
Specifications
- Origin
- shenzhen
- Price Term
- FOB
Optical Passive Heat Shrink Tube is a Rocker Switches product. Key specs — Origin: shenzhen; Price Term: FOB.
Product Description
Certification:CE,ISO
Features:
n Consist of cross linked polyolefin, hot fusion tubing and stainless Reinforcing steel rod.
n Keep optic transmission properties of optical fiber.
n Provide strength and protection to optical fiber splicing.
n Easy to use and avoid any damages to the optical fiber during installation.
n Sealing structure make the splice free from effect of temperature and humidity.
n Operating fully recovery temperature: -45°C~100°C.
n Minimum fully recovery temperature: 120°C.
Spec. | Rod Dia. | Standard Length | Inaccuracy | Dia. after splicing |
1.5-XX | 1.5 | 60, 40, 35 | ± 1mm | 3.5 x 3.1mm |
1.2-XX | 1.2 | 60, 40, 35 | ± 1mm | 2.8 x 2.3mm |
1.1-XX | 1.1 | 60, 50, 40, 35, 30 | ± 1mm | 2.7 x 2.3mm |
1.0-XX | 1.0 | 60, 50, 40, 35, 30 | ± 1mm | 2.6 x 2.3mm |
