Specifications

Brand: JILONG
Origin: CHINA
Price Term: FOB

Product Description

Feature
Includes all functions both power meter and laser source
To be used as power meteror laser source alone
To be used as both power meter and laser source simultaneously to perform optical fiber closed-loop test
Auto-off function

Specifications

Type	KL-330
Power Meter	Detector Type	InGaAs
	Measurement Range	-70~+3 dBm
	Uncertainty	±5% (-10 dBm,20±3â„ƒ)
	Calibrated wavelengths	850,980,1310,1550 nm
	Rosolution	0.01 dBm
	Optical Connector	FC or Universal 2.5mm adaptor
Laser Source	Emitter Type	FP-LD
	Wavelengths	1310/1550
	Output Power	-7 dBm
	Spectral Width	≤10 nm
	Output Stability	±0.05dB/15min; ±0.1dB/8hours
	Optica Connector	FC or Universal 2.5mm adaptor
Power Supply		Rechargeable Battery + Battery Charger
Battery Operating Time		≥6 hours(Both Power Meter and Laser Source are working) ≥28hours(Only Power Meter is working)
Auto-off time		10 mins
Operating Temperature		-10~+60 â„ƒ
Storage Temperature		-25~+70 â„ƒ
Dimension		150mm(W)×76 mm(D)×26 mm(H)
Weight		250 g

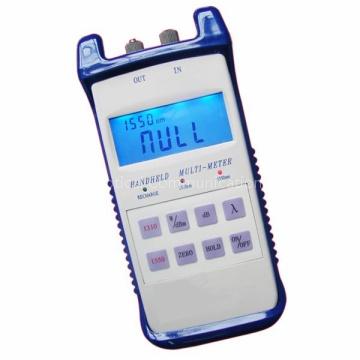

Optical Multi meter
