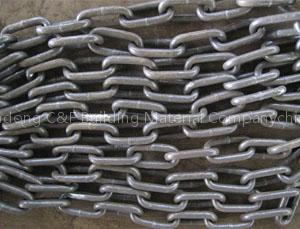

Name: Open link chain / studless link chain
Brand: C&F

OPEN LINK CHAIN:SIZE OF LINK,DIAMETER,TEST LOAD AND WEIGHT
D() DIAMETER		SIZE OF LINK		BM1		BM2		BM3		KG/M	WEIGHT	WEIGHT
D() DIAMETER		L OUTSIDE LENGTH	B OUTSIDE WIDTH	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	KG/M	25M	27.5M
INCH	MM	MM	MM	KN	KN	KN	KN	KN	KN		KG	KG
5/16	8	48	28	11.78	23.68	16.50	33.00			1.39	31.24	34.36
3/8	9	54	31.5	14.90	29.97	20.90	41.80			1.76	39.62	43.49
3/8	10	60	35	18.40	37.00	25.80	51.60			2.17	48.75	53.59
7/16	11	66	38.5	22.26	44.70	31.20	62.40			2.36	59.18	65.00
1/2	12.5	75	43.75	28.75	57.81	41.20	82.60			3.39	76.65	84.30
9/16	14	84	49	34.78	69.93	51.00	101.90			4.25	96.55	106.06
5/8	16	96	56	47.10	94.72	66.20	132.30	92.42	184.83	5.56	125.9	138.14
11/16	17.5	105	61.25	56.35	113.31	78.89	157.78	110.55	221.10	6.65	150.7	165.80
3/4	19	114	66.5	66.42	133.57	93.60	187.20	130.32	260.64	7.83	177.66	194.90
13/16	20.5	123	71.8	77.33	155.49	108.64	217.27	151.70	303.42	9.12	206.79	227.13
7/8	22	132	77	89.06	179.08	125.40	250.90	174.40	349.40	10.50	238.83	262.29
15/16	24	144	84	105.98	213.25	149.90	298.90	207.90	415.80	12.50	283.97	312.26
11/16	26	156	91	124.38	250.12	175.40	350.80	244.00	488.00	14.67	333.54	366.76
11/8	28	168	98	144.26	290.08	203.80	406.70	283.00	566.00	17.00	385.34	423.36
13/16	30	180	105	165.60	333.00	234.20	467.50	324.90	649.80	19.50	444.33	486.85
11/4	32	192	112	188.42	378.88	265.60	531.20	369.60	739.30	22.22	503.10	554.70
15/16	34	204	119	212.70	427.72	299.90	599.80	417.30	834.60	25.08	566.20	628.08
17/16	36	216	126	238.46	479.52	336.10	672.30	467.80	935.70	28.12	635.43	701.54
11/2	38	228	133	265.70	534.28	374.40	748.70	521.30	1042.50	31.33	712.80	781.92
19/16	40	240	140	294.40	592.00	414.50	829.10	577.60	1155.20	34.72	791.12	861.17
15/8	42	252	147	324.58	652.68	457.70	915.30	636.80	1273.60	38.28	869.27	950.94
13/4	44	264	154	356.22	716.32	502.70	999.60	698.90	1398.00	42.01	959.10	1053
113/16	46	276	161	389.34	782.92	548.80	1097.60	763.90	1527.80	45.92	1034.6	1142
17/8	48	288	168	423.94	852.48	597.80	1195.60	831.70	1663.50	50.00	1140.7	1245
2	50	300	175	460.00	926.09	648.80	1293.60	902.50	1805.00	54.25	1230.4	1348.5
