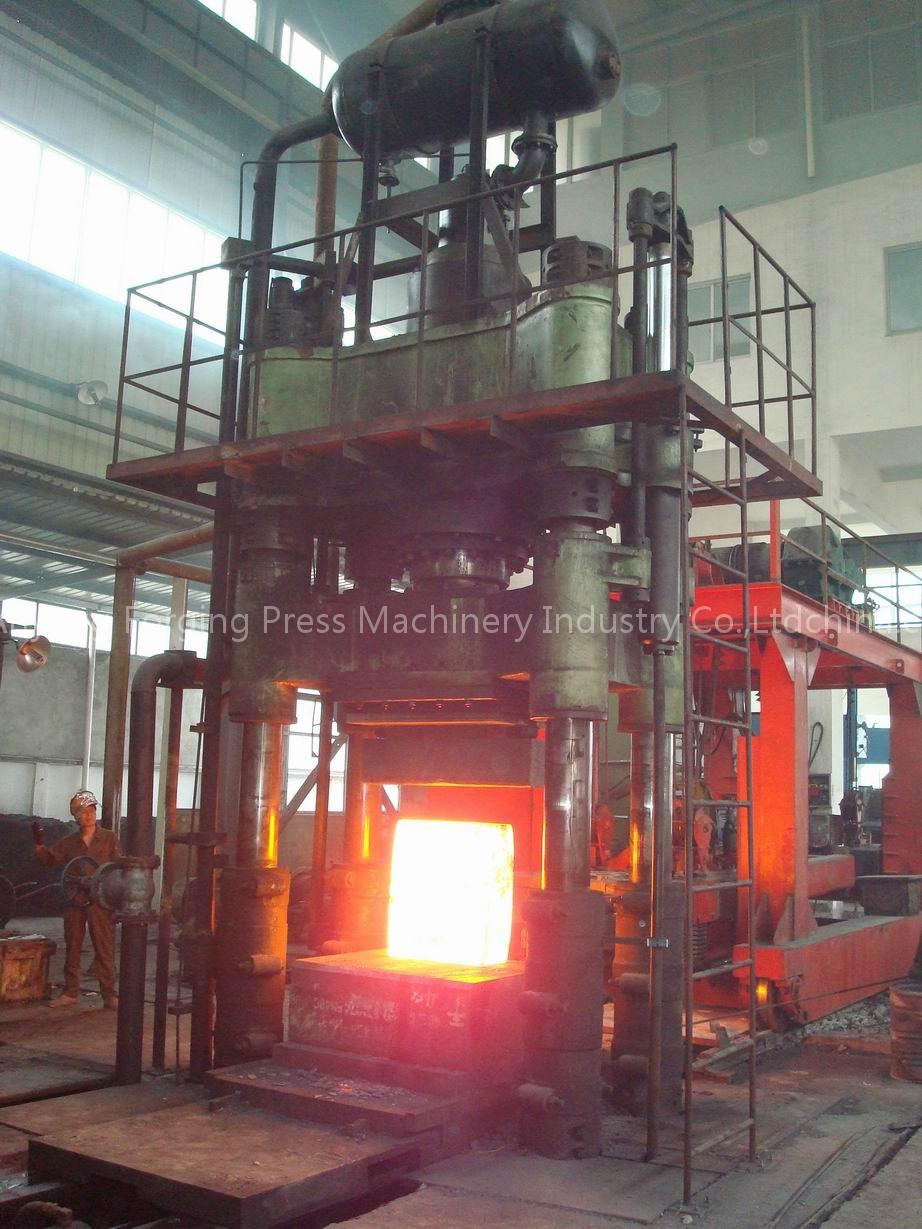

Open Die Hot Forging Press

800T Open Die Hot Forging Press Rated force: 8 MN Working pressure: 25 Mpa clear opening: 2300 mm Max stroke: 1000 mm Column center distance: 2200X1100 mm Return speed: 300 mm/s Working speed: 45 mm/s Idle stroke speed: 300 mm/s Fast forge number: 45 min-1 Oil cylinder diameter: 640 mm Column diameter: 260 mm Working table size: 2500X1400 mm Working table max stroke: 800 mm Working table speed: 200 mm/s Allowed max eccentricity: 80 mm Forge steel ingot drawing out: 5 T Forge steel ingot upsetting: 2.5 T Motor power: 330 KW Total weight: 90 T Height above ground: 7500mm
