Okuma OSP 5020L LCD Upgrade CNC Monitor

LCD Upgrade Information
A CRT can be unreliable and can be down for days at a time
when you need it the most. When a CRT burns out, installing
an LCD upgrade is the fastest and most reliable way to get a
machine controller up and running. LCD upgrades are 100%
compatible with old video connections such as BNCs, 15 pin,
9 pin, 8 pin, VGA, CGA, 10 pin edge connectors, and many
others.

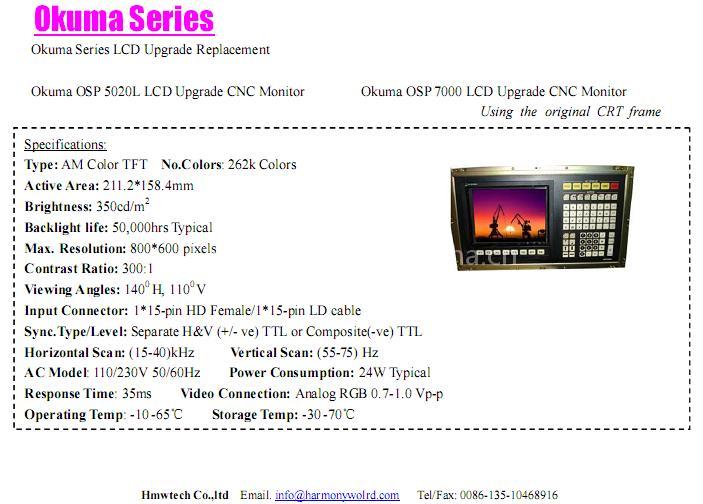

Okuma Series

Okuma Series LCD Upgrade Replacement

Okuma OSP 5020L LCD Upgrade CNC MonitorOkuma OSP 7000 LCD Upgrade CNC Monitor

Using the original CRT frame

Specifications:

Type: AM Color TFTNo.Colors:262k Colors

Active Area: 211.2*158.4mm

Brightness: 350cd/m2

Backlight life: 50,000hrs Typical

Max. Resolution: 800*600 pixels

Contrast Ratio: 300:1

Viewing Angles: 1400 H, 1100 V

Input Connector: 1*15-pin HD Female/1*15-pin LD cable

> Separate H&V ( ve) TTL or Composite(-ve) TTL

Horizontal Scan: (15-40)kHzVertical Scan: (55-75) Hz

AC Model: 110/230V 50/60HzPower Consumption: 24W Typical

Response Time: 35msVideo Connection: Analog RGB 0.7-1.0 Vp-p

Operating Temp: -10-65℃Storage Temp: -30-70℃
