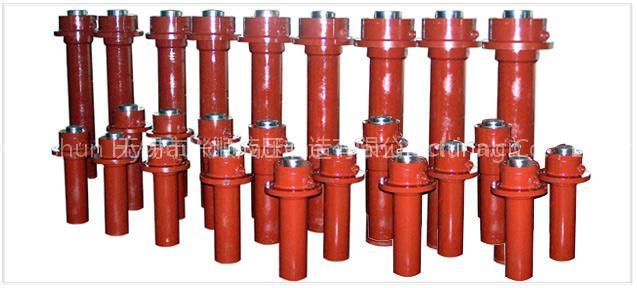

Oil Cylinder(YZG)

YZG special plunger cylinder for wood machinery pres is applicable for the presses such as three-plywood, flakeboard, medium density fiberboard, laminated floor, bamboo cavity plate and wooden plate forming and so on.
Technical parameter

Type	Plunger d mm	mmEffective area cm2	kgf 26MPa	Plunger	Plunger d mm	Effective area cm2	kgf 26MPa
YZG-100×S	100	78.54	20420.35	YZG-260×S	250	530.93	138041.6
YZG-125×S	125	122.75	31906.8	YZG-280×S	280	615.75	160095.6
YZG-140×S	140	153.94	40023.89	YZG-300×S	300	706.86	183783.2
YZG-160×S	160	201.06	52276.1	YZG-320×S	320	804.25	209104.4
YZG-180×S	180	254.47	66151.94	YZG-340×S	340	907.92	236059.3
YZG-200×S	200	314.16	81618.41	YZG-360×S	360	1017.88	264647.8
YZG-220×S	220	380.13	98834.5	YZG-400×S	400	1256.64	326725.6
YZG-230×S	230	415.48	108023.66	YZG-420×S	420	1385.44	360215
YZG-240×S	240	452.39	117621.23	YZG-460×S	460	1661.9	432094.7
YZG-250×S	250	490.87	127627.2	YZG-520×S	520	21223.72	552166.3

superiority
1. The piston type hydraulic cylinder used for marine machinery.

2. Our quality management system strictly implement ISO9001:2000.

3. Reliable quality, reasonable price, prompt delivery.

4. Ceramic piston rod can be configured

5. Production of non-standard hydraulic cylinder according to customer request.

6. Many years of professional manufacturing experience.

7.Mature manufacturing process.

8.Strict quality control.

9. The selection of high quality hydraulic components.

10.Competitive price level.

Need more production information, please contact us.
