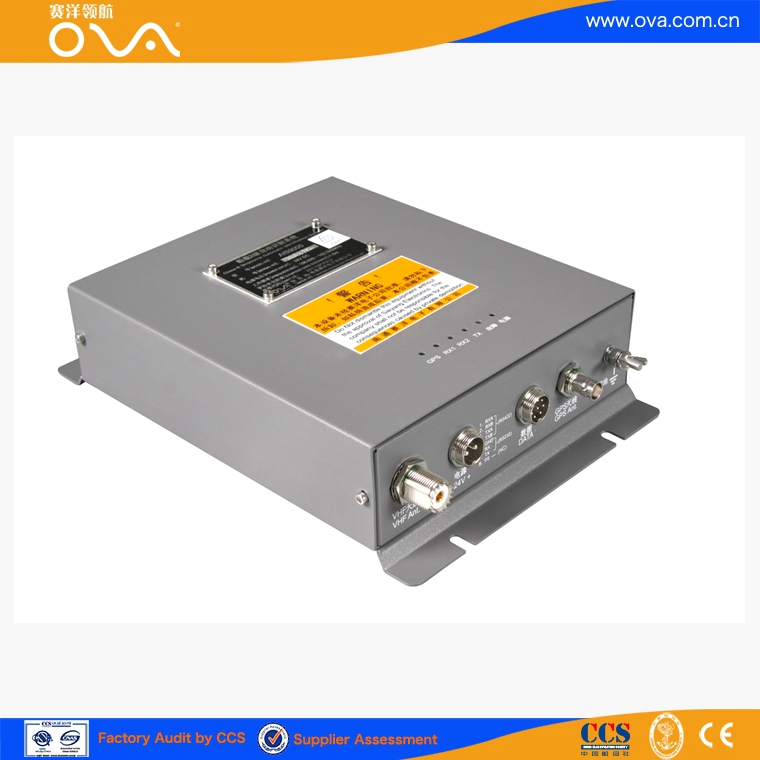

OVA AIS transponder and receiver Class B
Listing ID#154996
ModelAIS9000
CategoryElectrical Equipment & Supplies
Electrical Equipment & Supplies

OVA AIS transponder and receiver Class B

Specifications

Brand
OVA
Origin
CHINA
Certifications
CCS CE SGS
Packaging
CARTON
Price Term
EXW/EX-Work,FOB
Payment Term
T/T,L/C,Western Union
Request Quote
Quick answer

OVA AIS transponder and receiver Class B is a Electrical Equipment & Supplies product. Key specs — Brand: OVA; Origin: CHINA; Certifications: CCS CE SGS; Packaging: CARTON.

Product Description

TX Channel 1 ch RX Channel 2 ch Frequency 156.025～162.025MHz Bandwidth 25KHz RF Out Power 2W Modulation GMSK TX Channel 87B/161.975MHz RX Channel 88B/162.025MHz Data Interface RS422/RS232 Data Rate NMEA0183, 38400bps Data Format Comply to IEC61162 Antenna 50Ω,TNC(GPS Antenna) BNC(VHF Antenna) Power Voltage DC 24V(Internal Isolated Power) Allowed Voltage Range:11-32V DC Current ≤0.3A for RX, about 1A for TX Compass Safe Distance ≥1.5m GPS Accuracy ±10m(1-2m when receive Message 17) Environment Temperature: -15～+55°C Waterproofing: IP44 Size 260mmx190mmx55mm Weight 2kg Standard Annex 1.GPS Attenna 2.Power Line 3.Safety Fuse, Locking Screws Manual Certification, Warranty Card
