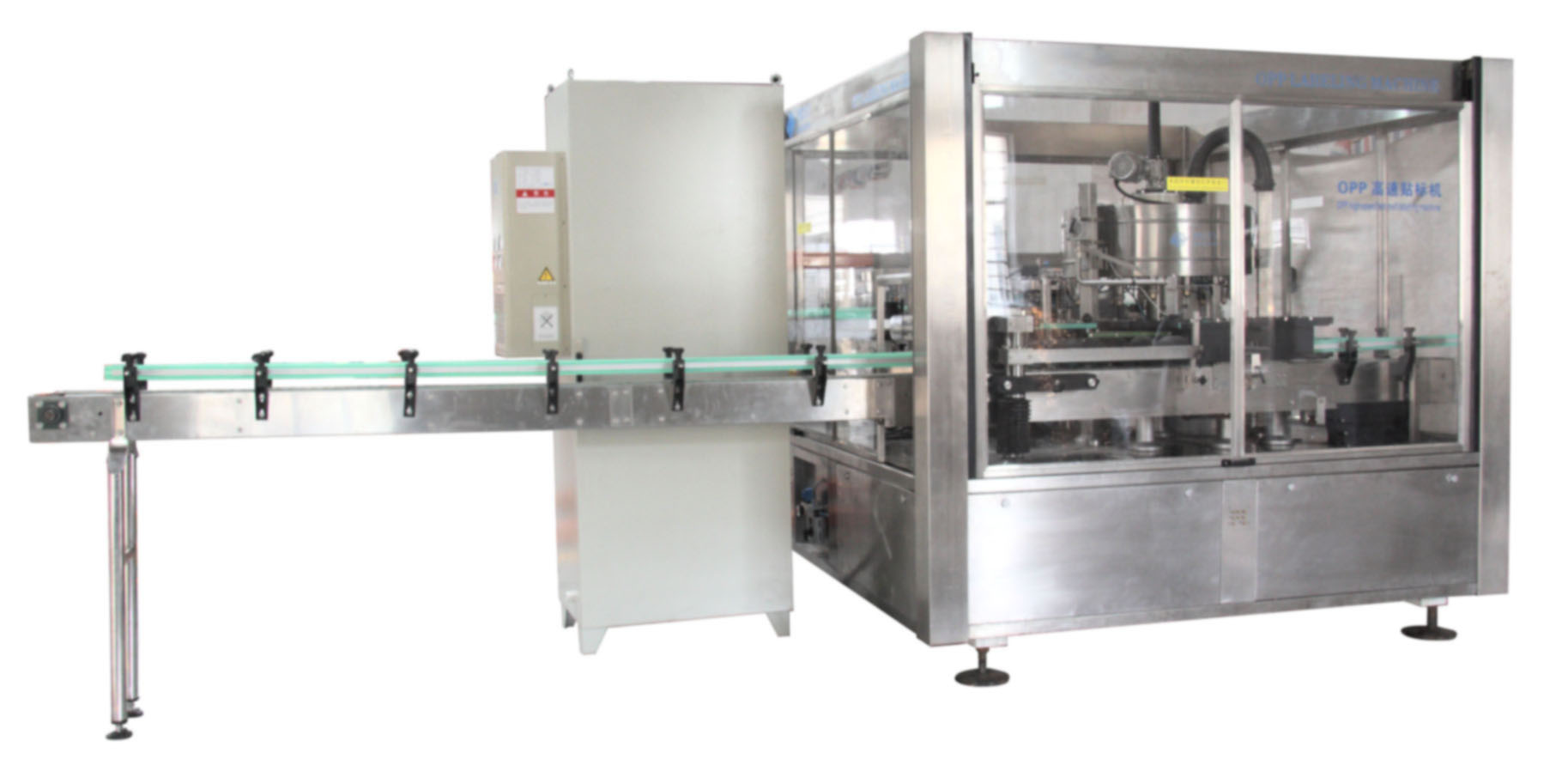

OPP hot melt labeling machine

OPP hot melt labeling machine is one of our key machines.it is very popular among our clients these years for its good features:low cost ,invironmental protection,long life ,besides,its opp label cost is also very low. Features: 1 Pasting labels in rotary way with frequency and speed control; 2 the gum is sprayed out or scraped out; Label is scrolled.

3 Speed: 6000/12000 bottles/hour （enough rigidness and roundness are required） 4 OPP hot-melt adhesive system is from Nordson(USA) Technical parameters: 1、Rated speed: 6000～12000 bottles/hour 2、Direction: forward 3、Size (length×width×height ) mm: 2300×2025×2100 4、Net weight(ton): 2.3 5、Pressing-bottle-head-number: 9 6、Gross power: 4 kW 7、Gum supplier: 1 8、Conveyer height: 1100mm 9、Conveyer length: 2000mm 10、Pasting area: all around the body 11、Labeled container’s diameter: Ф40～Ф100mm 12、 Specification of conveyer’s flat-top-chain: 38.1×82 13、External connecting power source requires:≤1.1kW 14、Pasting method: OPP hot-melt adhesive 15、Voltage: 220 V 50Hz
