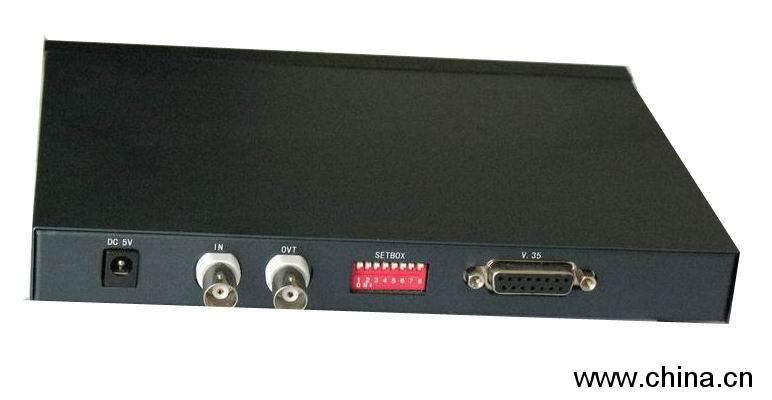

OLINK CONO3 E1-V.35 Protocol Converter

Feature

1. Offer one E1 , 75 & 120ohm adaptive .

2.Standard: G.703, line code: HDB3

3.Alarm system for E1 loss

4.Support local/remote loop test

5.DB25 connector for V.35, in DCE mode

6.Multiple clock selection: internal clock, V.35 line clock and E1 recovery clock

7.Panel instruction for easy understanding of equipment working status

8.Internal power supply, 220V AC and -48V DC optional

9. Have indicators of PWR, LOS,RMA, TD,RD,DCE,TS16

Specification

1.E1 port

Bit rate: 2.048Mbit/s+-50ppm

Line code: HDB3

Standard: Compatible with ITU-T G703

Connector: BNC connector with line impedance 75ohm,

RJ45 connector with line impedance 120ohm

Rate: 2.048 Mbit/s+-50pmm

2. V.35 port

Rate : 2048KBit/s

Connector: DB25female,

3.Operating Temperature : 0-5oC

4. Storage temperature : -40 ----- +70 oC

5. Humidity : 9%-95% non-condensing

6.Pressure : 86-106Kpa

7.Power Supply: DC -36---- - 72V or AC 180- 240V

: 200*140*35Hmm
