OF-530 Optical Light Source is a Fiber Optic Equipment product. Key specs — Origin: CHINA.
Product Description

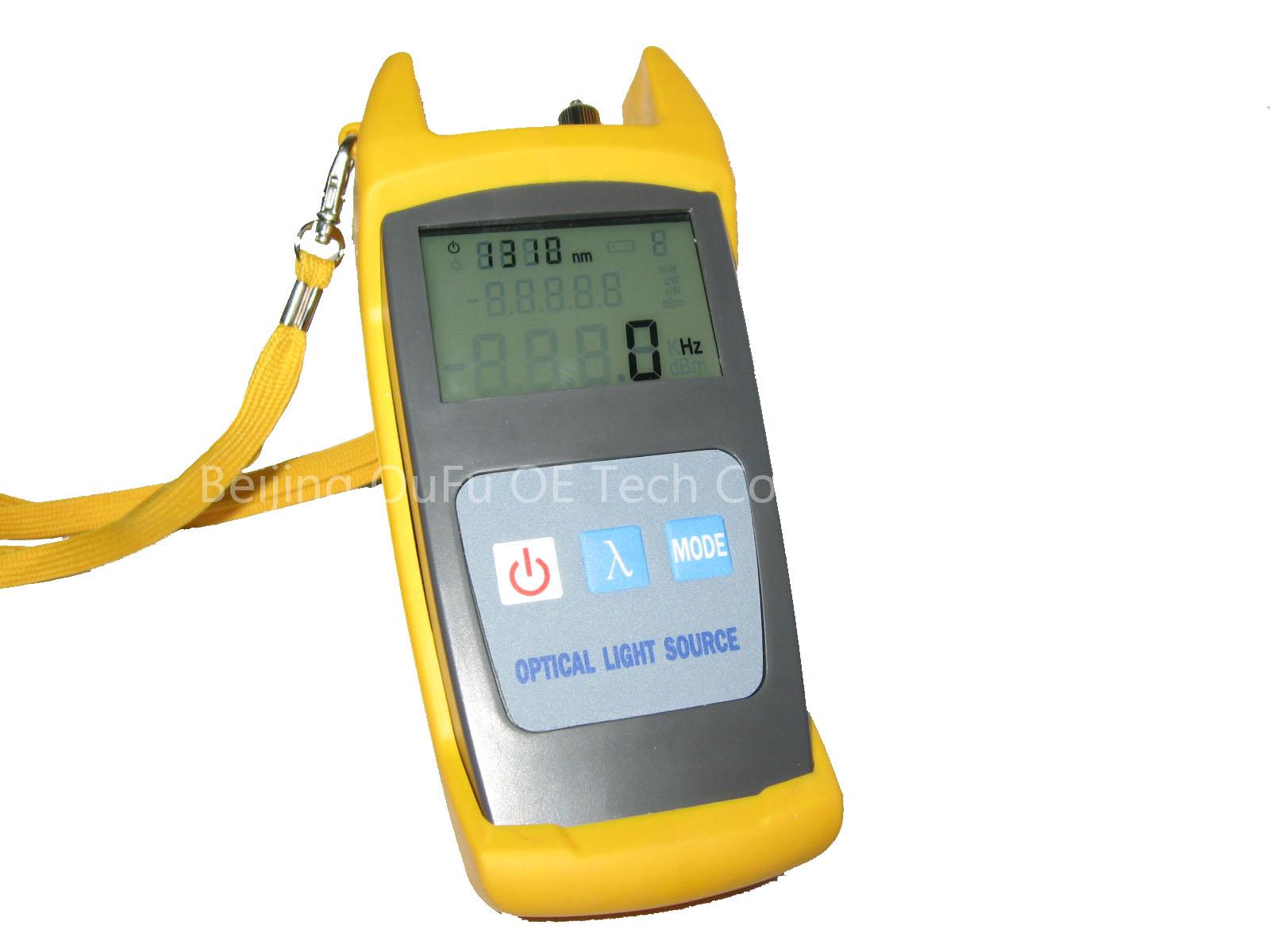

OF-530 handhold optical light source is applied FP-LD as emitter. Adopted the outstanding technique of same type of products, it can provide 1 to 4 wavelength output according to the specific requirements including the 650nm red source, 1310/1550nm wavelength for the single mode fiber and 850/1300nm wavelength for the multimode fiber. Together with OF-530 optical power meter, it acts as a perfect solution for the fiber optic network.
Specifications:
Type | OF-530 |
Wavelength（nm） | More wavelength can be optional ,maximum can be four wavelength |
Emitter Type | FP-LD |
Output Power（dBm） | 0（at 650nm is 0 dBm）/-7/-7 |
Modulation Frequencies | CW / 2Hz (650) / 270Hz,1KHz,2KHz (1310, 1550) |
Fiber Type | SM , MM |
Optical Connector | FC (Universal adapter) |
Power supply | Alkaline battery ( 3 AAA 1.5V battery ) |
Operating temperature（°C） | -10~+60 |
Storage temperature（℃） | -25~+70 |
Battery working hours（h） | 45 |
Dimension（mm） | 148×74×28 |
Weight （g） | 225 |
