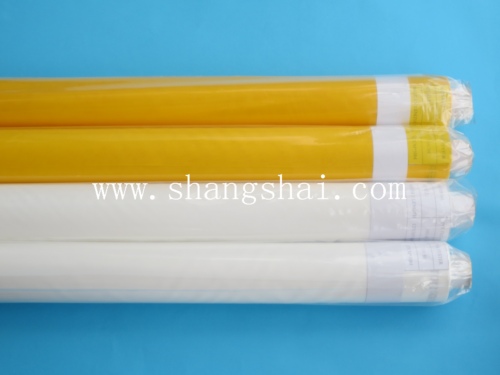

Nylon Mesh
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
Nylon Mesh is a Packaging & Printing product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
SS PA 1000 is the preferred mesh for printing shaped or 3D objects, and special applications such as ceramic tiles, glass containers, promotional items, and other challenging surfaces.
Nylon mesh is smooth and provides high filtration capacity. It finds application in industries including specialty chemicals, paints, food& beverages, cement industry and pharmaceuticals.
Nylon Mesh Type Specification (/cm) Mesh count (mesh/inch) Thread Diameter （um） Mesh opening（um） Open Area（%） Thickness（um） g/㎡ SS-NL4/1931 4 10 550 1931 60 1100 251 SS-NL5/1500 5 13 500 1485 55 1000 270 SS-NL5/1535 5 13 450 1535 59 900 218 SS-NL6/1254 6 15 400 1254 57 800 199 SS-NL7/1068 7 18 350 1068 56 700 183 SS-NL8/891 8 20 350 891 51 700 203 SS-NL8/990 8 20 250 990 63 500 104 SS-NL9/853 9 24 250 853 59 500 125 SS-NL10/743 10 25 250 743 55 500 130 SS-NL10/693 10 25 300 693 48 600 187 SS-NL12/578 12 30 250 578 48 500 156 SS-NL12/528 12 30 300 528 40 600 224 SS-NL14/410 14 35 300 410 33 510 261 SS-NL14/509 14 35 200 509 51 340 116 SS-NL16/421 16 41 200 421 45 340 136 SS-NL16/371 16 41 250 371 35 425 213 SS-NL17/384 17 42 200 384 43 340 139 SS-NL18/332 18 45 220 332 36 374 181 SS-NL20/347 20 50 150 347 48 255 93 SS-NL20/297 20 50 200 297 35 340 166 SS-NL24/264 24 60 150 264 40 255 112 SS-NL28/235 28 70 120 235 43 204 84 SS-NL28/205 28 70 150 205 33 255 131 SS-NL30/211 30 76 120 211 40 204 91 SS-NL32/210 32 80 100 210 45 170 66 SS-NL36/176 36 90 100 176 40 170 75 SS-NL40/149 40 100 100 149 35 170 83 SS-NL43/151 43 110 80 151 42 136 58 SS-NL44/126 44 112 100 126 31 170 93 SS-NL48/127 48 120 80 127 37 136 64 SS-NL56/117 56 142 60 117 43 102 42 SS-NL59/108 59 150 60 108 41 102 45 SS-NL64/95 64 163 60 95 37 102 49 SS-NL72/88 72 183 50 88 40 85 38 SS-NL76-79 76 193 52 79 36 88 43 SS-NL80/74 80 203 50 74 35 85 42 SS-NL88/71 88 224 42 71 39 71 33 SS-NL96/62 96 244 42 62 35 76 36 SS-NL100/55 100 254 42 55 31 80 37 SS-NL104/51 104 264 42 51 29 71 39 SS-NL110/46 110 279 42 46 25 76 41 SS-NL120/39 120 305 42 39 21 80 45 SS-NL120/43 120 305 38 43 25 65 37 SS-NL120/46 120 305 35 46 29 60 31 SS-NL130/32 130 330 43 32 17 73 51 SS-NL130/40 130 330 35 40 25 60 34 SS-NL140/35 140 356 35 35 22 60 36 SS-NL150/34 150 381 31 34 25 53 30 Remark:The above datas are theoretic ,please reference the actual datas if there it differs.
