Nuclear Multifunction Tester

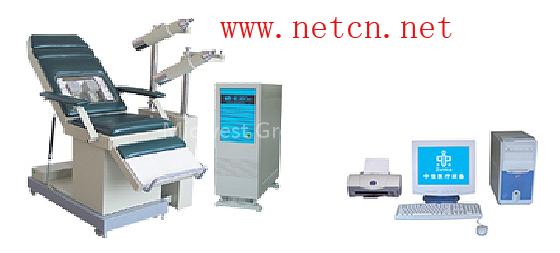

Nuclear Multifunction Tester Model:KZ4-MN-6300XT Cat.No:W72436

Radioisotope tracer was measured by means of a body organ function instruments. The instrument as a routine clinical examination, and is widely used in Nuclear Medicine and isotope levels of the hospital room. The instrument is designed with the host bed chair-in-One can debug the structure, side hung precordial bladder area probe lift box.

Left kidney, heart and anterior bladder area and the back of the rotating probe by five servo motor drive, easy to adjust to the position, practical Function: 1, kidney diagram (measured while the bladder area and the precordial curve) 2, the rate of thyroid iodide uptake 3, thyroid inhibition rate 4, over potassium chlorate excretion experiments 5, effective half-life determination of 6, glomerular filtration rate (GFR) 7, sub-renal plasma flow (ERPF) Main Technical Specifications Point Source Sensitivity: ≥ 0.18 (min × Bq) -1 Window count: ≥ 0.14 (min × Bq) -1 Window Background: ≤ 900CPM Probe inconsistency: 5% less 8-hour Stability: less than 3% Energy Analysis Range: 20 ~ 1000KeV Kidneys probe adjustable range:: Center distance: 90mm ~ 140mm Vertical displacement: ≤ 130mm Precordial probe Lifting range: ≤ 350mm Light District, the scope of the probe lift bladder: ≤ 350mm Backrest rotation angle: 100 ° ~ 170 ° Nuclear Multifunction Tester Model:KZ4-MN-6300XT
