Listing ID#10210523
CategoryMetal & Metallurgy Machinery

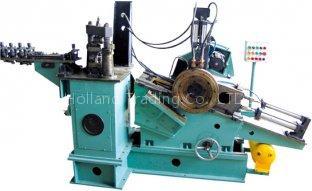

Notching and coiling machine
Specifications
- Brand
- 1997
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
Notching and coiling machine is a Metal & Metallurgy Machinery product. Key specs — Brand: 1997; Origin: China (Mainland); Price Term: FOB.
Product Description
Nominal pressure | 25KN | OD of ferrite core | < Φ 630mm |
Stroke of slide | 24mm | Width of steel tape | <80mm |
Number of stokes per min | 100-240mmâ€Â¹ | Angle of flume | 20° |
Max. Punching thickness | 0.5mm | Coiling servo motor | 4.4kw, 1500rpm |
Number of slot | 80-140 | Weight | 2500kg |
ID of ferrite core | > Φ 220mm | Max. Shut height | 195mm |
ID f decoiling | 450-510mm | Max. OD of decoiling | 1200mm |
