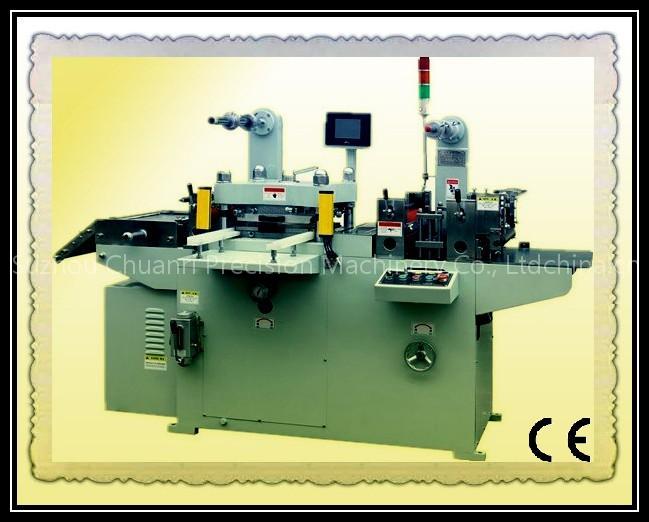

Non Woven Fabric Die Cutter Machine
Specifications
- Brand
- Chuanri
- Origin
- China
- Price Term
- FOB
Non Woven Fabric Die Cutter Machine is a Business Services product. Key specs — Brand: Chuanri; Origin: China; Price Term: FOB.
Product Description
Model 320B
Max Feeding Width ( mm ) 320
Cutting Area ( mm ) 300*300
Cutting Speed ( T/M) 30-170
Position Accuracy ( mm ) ±0.10
Power of Main Engine ( kw ) 2.2
Size ( mm ) 2300*1250*1500
Voltage (V ) 220
Functional characteristics:320B die cutting machine is developed on the basis of 320A. The machine body is cast on the whole, and the machine enjoys powerful pressure, stable operation, firm and durable.
It contains an oil gear box which reduces abrasion to the machine during the operation, thus prolonging the life span of the machine, enhancing the utilization ratio of the machine.Scope applicable:The product is developed aiming at the die cutting and forming of various insulating materials such as PVC, film, Mylar, copper oil, aluminum foil, foam, etc. in the electronic industry.
