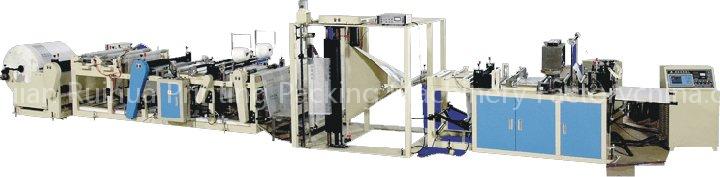

Non-Woven Bag Making Machine
Specifications
- Brand
- ruihua
- Origin
- Ruian,Zhejiang,China
- Price Term
- FOB
Non-Woven Bag Making Machine is a Bag Making Machines product. Key specs — Brand: ruihua; Origin: Ruian,Zhejiang,China; Price Term: FOB.
Product Description
Name: Non-Woven Bag Making Machine (BTWF)
Characteristics:
This non-woven bag making machine applies for non-woven materials. It can make many kinds of bags such as vest bags, loop handle bags, flat bags, and ribbon-through bags for shoes and purse etc.
It is equipped with computer touch screen, step motor to control the length and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well-sealed and nice-cutting with high speed and efficiency. It is an ideal environmental protection bag making equipment.
| Main Technical Variables: | ||||
| Model | BTWF-300 | BTWF-450 | BTWF-600 | BTWF-750 |
| Width of bag | 300 | 450 | 600 | 750 |
| Length of bag | 10-999mm | 10-999mm | 10-999mm | 10-999mm |
| Position precision | 0.5MM | 0.5MM | 0.5MM | 0.5MM |
| Speed | 20-60pcs/min | 20-60pcs/min | 20-60pcs/min | 20-60pcs/min |
| Electro thermal function | 9.5kw | 10.5kw | 11.5kw | 12.5kw |
| Voltage of power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| Total power | 20kw | 22kw | 24kw | 28kw |
| Weight | 2100KG | 2500KG | 2800KG | 3000KG |
| Overall dimension (mm) | 8600 ×1300 ×2100 | 8600 ×1300×2100 | 8600 ×1300×2100 | 8600 ×1500 ×2100 |
