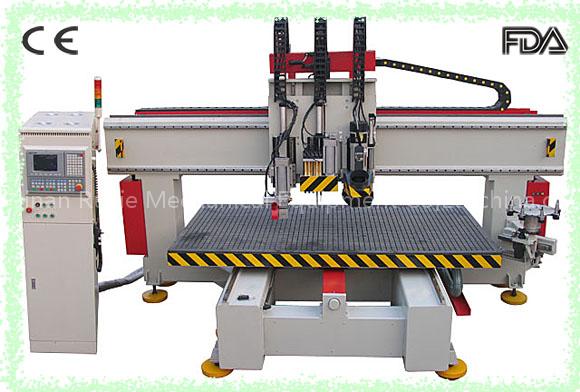

New woodworking machine RJ-1325 is a Agriculture product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Specifications:
1.Y-axis adopts double motors to ensures stable operation 2. Lathe bed is cast wholly and firmly and will not deform 3.Highly accurate Rack Rail travel method with high speed 4. The vacuum cleaning system offers a clean working environment and better quality ensures high speed and efficiency unique calculating system realizes speedy, accurate, curvy operation.
Parameters:
Working travel
X axis 1300 mm Y axis 2500 mm Z axis 230 mm
Table size
1300 mm*2500 mm
Maximum speed
X Y axes 60m/min
Spindle
Voltage: AC380v Frequency:400Hz
Italy HSD
Speed:24000r/min Power:8kw
Pressure
Air-blow pressure 0.4 MPa Tool hold Pressure 0.7 MPa
Pressure protection
No less than 0.7
Dust collecting power
3.0kw
Vacuum power
5.0kw (phenol aldehyde laminated cloth board)
Total power
23.0kw
Mechanism size
Area:1.8m*3.3m Height:1.5m Weight:850kg
Japanese servo motor
Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min.
