Listing ID#10029645
ModelHY300ST
CategoryATVs
Quick answer

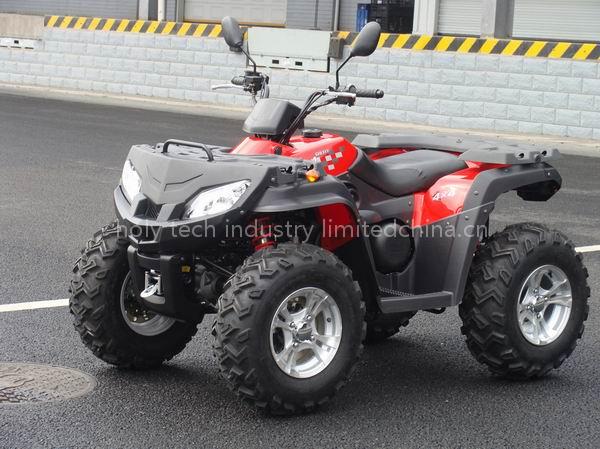

New 300cc 4x4ATV is a ATVs product. Key specs — Origin: china; Price Term: FOB.
Product Description
| Engine Type | Single Cylinder, 4 Stroke,Water Cooling, OHC,Automatic Clutch |
| Bore×Stroke | 71×66.8mm |
| Compression Ratio | 10.5:1 |
| Displacement | 264 CC |
| Max Power | 14.7 kw/(7000±5%) rpm |
| Max.Torque | 23.0 N.w/(4500±5%) rpm |
| Fuel Tank Capacity | 12 L |
| Gear | CVT+2 Forward Gears And 1 Reverse Gear |
| Transmission Mode | Shaft |
| Start Mode | Electric/Manual |
| Max.Speed | 73 km/h |
| Ignition Mode | CDI |
| Battery capacity | 12 v14Ah |
| Engine Oil | 1.6L |
| Lubrication | Press splash |
| Parking Trig | Mechanic lock |
| Chassis | 　 |
| Min.Ground Clearance | 290 mm |
| Front Tires | AT25×8-12 |
| Rear Tires | AT25×10-12 |
| Front Brake | Disk |
| Bear Brake | Disk |
| Front Suspension | IndependentDouble A-arm |
| RearSuspension | IndependentDouble A-arm |
| Dimensions | 　 |
| Product Dimensions | 1950×1150×1185 mm |
| Wheelbase | 1287 mm |
| Seat Hight | 880 mm |
| Dry Weight | 308 Kg |
| Load Capacity | 150kg |
| Climbing Ability | ≥30° |
| Min.Turning Radius | 2900±200 mm |
| Max.Number Of Riders | 1 |
| Others | 　 |
