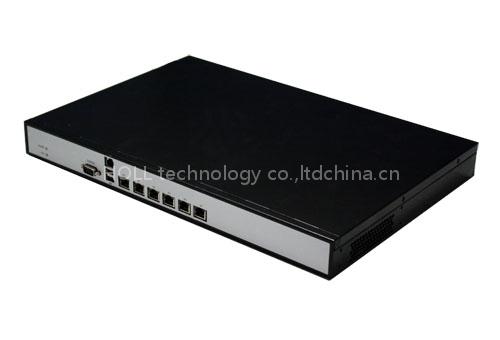

Network Security Platform IEC-516P

Network Security Platform IEC-516P is an 1U network hardware platfrom with Intel PineView-D D425 Single-core / D525 Dual Core 1.8GHz,up to 6x RJ-45 GbE, 2x RS232, 10x USB2.0, 1x PCI(Support 4-ports PCI NIC), 1xPCIEX1 expansion slots, and 2x LAN BYPASS, Supporting Microsoft, FreeSBD, Novell, Redhat, SCO, Linux OS, for ethernet and internet applications of IPS, IDS, VPN,UTM, network security.

Holl provides network hardware appliances and network security platforms with factory price, OEM is available. Please contact us to get more info of our network security platforms.
Features
Intel PineView-D onboard, 1.6GHz/ FSB 667MHz
PineView-D + ICH8M Chipset
2x 200-Pin DDR2/667/533 SO-DIMM up to 4Gb memory
Onboard 6x Intel82574L Gigabit Lan
1x PCI Expansion Slot (Optional)
6x RJ-45, 2x RS232, 4x USB2.0
Support DOM, SATA, CF Storage
Support watchdog function
nbsp
System
Construction Compact 19" 1u Rackmount Heavy-Duty Steel Chassis
CPU Support Intel PineView D410 Single-core / D510 Dual Core 1.6G
Chipset PineView-D + ICH8M
BIOS AMI BIOS
System Memory 2x 200-Pin DDR2/667/533 SO-DIMM, Up to 4GB
Display Chip Built-in
Ethernet 6x Intel82574L Gigabit Lan
I/O Chip Winbond-W83627HF Chip
LAN BYPASS 1x BYPASS Function
Watchdog Timer 255 Generates a time-out system reset
Dimensions(WxHxD) 433x430x44.4 mm
I/O Interface
IDE Interface 1x 44-Pin IDE Interface Support ATA66/100, Support 44-Pin DOM
SSD 1x CF Slot
SATA Interface 3x SATA Interface
LAN 6x RJ-45 Ports in front panel
USB Ports 2x USB2.0 Ports
COM 1x DB9 COM1 or 1x RJ-45 COM1 in Front Panel, 1x Built-in COM2
Display Ports 1x VGA Port
Keyboard/Mouse Built-in PS/2
PCI Expansion Slot 1x PCI (Optional), 1xPCIEX1 support expand 4x LAN/8LAN
Environmental Specifications
Oprerating Tempreture 0 °C to 60 °C
Storage Humidity 5% to 40°C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
Safty FCC/VDE(Level A)
Operation System Support Microsoft, FreeSBD, Novell, Redhat, SCO, Linux
Optional Components
4x Lan ports Moduel
nbsp
Ordering informations

Model No.	Ethernet controller	GbE RJ-45	BYPASS segment	PSU
IEC-516P-010	Intel82574L	6	2	180W ATX
IEC-516P-020	Intel82574L	6	N/A	180W ATX
IEC-516P-030	Intel82574L	4	1	180W ATX
IEC-516P-040	Intel82574L	4	N/A	180W ATX
