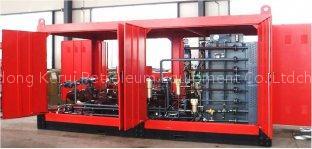

Natural gas compressor

Design and manufacturing according to  API618 and API11P standards;

Driving and cooling methods are optional to meet customers' requirements;

All  pressure vessel, high pressure piping are qualified and  supplied  with authorized  license. Annual running time up to 8000 hours, with a 20-year service life. All the equipments meet the protection and ex-proof grade requirement. Five series of cameron compressor: CFA Series:   high-precision and symmetric balance in design, reduces the vibration of the unit, minimizes the mechanical fatigue to the crankshaft and load to the bearing bush, which prolong the unit service life; With a max speed1800RPM, and  max gas discharge pressure 37MPa; It is widely used in nitrogen compressing, CNG station and some other techniques.

Data Sheet

Model	CF32	CF34
Number of Power Cylinders	2	4
RPM Range	850~1800  RPM	850~1800 RPM
Max. Discharge Pressure	37MPa	37MPa
Drive Method	Natural Gas Engine /Electric motor	Natural Gas Engine /Electric motor
ContinuousPower	216kw	432kw
Stroke	76 mm	76 mm
Rod Diameter	29 mm	29 mm
PistonSpeed	4.57 m/s	4.57 m/s
LubeOil Flow Rate	38 L/min	38 L/min
Width×Length	249cm×81cm	249cm×142cm
Weight	544 kg	907 kg

RAM Series   Integral body design, strengthened  by ribbed cast iron ,with integral crosshead guide and tie bolt construction; Bearings: split shell type, main bearing and connection rod bearing are precise interchangeable three layer metal structure. With a  max speed 1500RPM, and max gas discharge pressure 14MPa; It is widely used in natural gas processing, fuel gas boosting, gas lifting and some other techniques. Data sheet

Model	RAM52	RAM54
Number of Power Cylinders	2	4
RPM Range	600~1500RPM	600~1500RPM
Max. Discharge Pressure	14MPa	14MPa
Drive Method	Natural Gas Engine /Electric motor	Natural Gas Engine /Electric motor
ContinuousPower	828kw	1771kw
Stroke
