Listing ID#70513
ModelNZG-32
CategoryMetallic Minerals

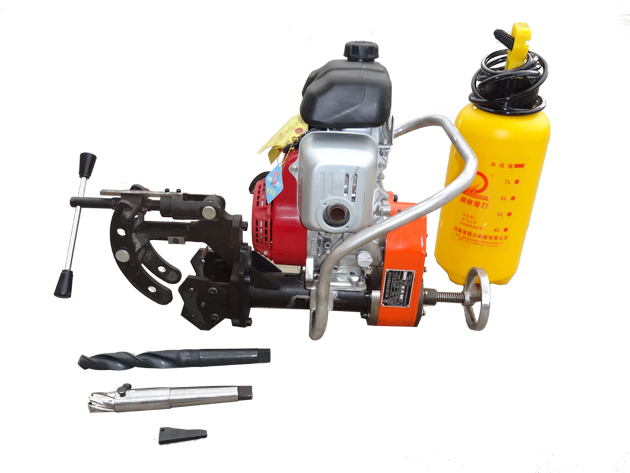

NZG-32 Gasoline Rail Drilling Machine
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
Quick answer
NZG-32 Gasoline Rail Drilling Machine is a Metallic Minerals product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
Application Special tool for processing bolt connectors or electrical wiring holes on railway rail radials
Feature 1.Gasoline driven, strong adaptability to an open working environment 2.Swift clamping and convenient operation 3.Accurate positioning, high precision of drilling 4.Can fit hollow drill and twist drill 5.Portable design, quickly up and down the rail
Main technical parameter 1.Power:2.2kW/3600rpm 2.Spindle speed:210rpm 3.Borehole diameter range:φ9.8mm~φ32mm(twist drill) φ16mm~φ31mm(hollow drill) 4.Aperture precision: ±0.5mm 5.Total weight:38 kg
