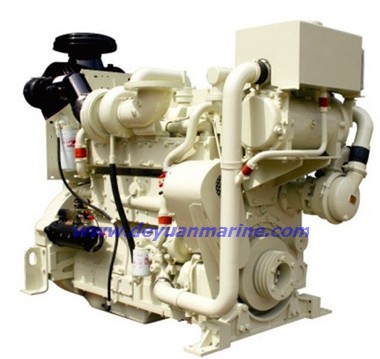

NT855 series 300HP Marine Cummins Diesel Engine
Specifications
- Origin
- china
- Price Term
- EX-Work
- Payment Term
- T/T
NT855 series 300HP Marine Cummins Diesel Engine is a Industrial Power Supplies product. Key specs — Origin: china; Price Term: EX-Work; Payment Term: T/T.
Product Description
General Engine Data: Engine Model:NT855-M(300HP Cummins Diesel Engine ) Use:Commercial propulsion Displacement:14.0litre(855in.3) Bore*Stroke:139mm*152mm Fuel system:PT Cylinders:6 Power:224kw(300BHP) Fining Order:1-5-3-6-2-4 Fuel System: Fuel consumption:57.8litre/h(15.3GPH) Approximate Fuel Flow to Pump:Litre/h(GPH) 174(46) Fuel Rail Pressure Range:kPa(PSI) 847(123) Air system: Intake manifold pressure:mm Hg(in.Hg) 610(24) Intake air flow:litre/sec (CFM) 280(590) Heat rejection to Ambient:kw(BTU/min) 29(1700) Minium Ambient Temperature for cold Start(No Aids):℃(℉) 0(32) Exhaust system: Exhaust gas flow(after turbine):litre/sec (CFM) 650(1400) Exhaust gas temperature(after turbine):℃(℉) 432(810) Cooling system: Heat rejection to Engine Coolant:kw(BTU/min) 191(10,900) Engine Water Flow:litre/min(GPM)427(113) Raw Water Flow:litre/min(GPM)234(62) Pressure Cap Rating w/heat exchanger:kPa(PSI) 103(15) Offer more Marine Cummins engine: NT855-M 240HP,NT855-M 270HP,NT855-M 300HP Marine CUMMINS Engine .
NT855-M 340HP,NT855-M350HP,NT855-M360HP Marine CUMMINS Engine . NT855-M 380HP,NT855-M 400HP Marine Cummins Engine .
