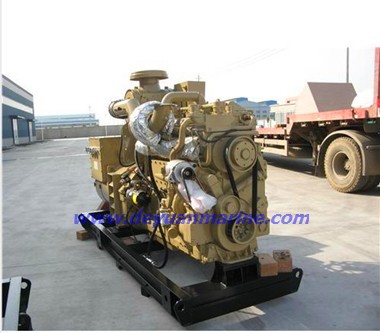

NT855 series 270HP Cummins Diesel Engine

Gegernal Engine Data: Engine Model:NT855-M(270HP Cummins Diesel Engine ) Use:Commercial propulsion Displacement:14L Bore*stroke:139*152mm Aispiration:Turbocharged Power:201kw(270hp) Engine torque:1068N-m(787ft/lb) Brake Mean Effective Pressure:958Kpa(PSI) Compression Ratio:14.5:1 Fining Order:1-5-3-6-2-4 Fuel system: Fuel Consumption:52.0litre/hr(13.7gph) Approximate Fuel Flow to pump:155l/h(41gph) Fuel Rail Pressure Range:710kPa(103PSI) Weight(dry): Engine Only:1258kg(2770lb) With heat exchanger cooling system:+127(280) Air system: Intake Manifold Pressure:592mm Hg(23in Hg) Intake air flow:280litre/sec(600CFM) Heat rejection to Ambient:kw(BTU/min) 26(1500) Minimum Ambient Temperature for cold start(No Aids):℃(℉) 2(32) Exhaust system: Exhaust Gas flow(after turbine):litre(CFM) 640(1350) Exhaust Gas Temperature(after turbine):℃(℉) 404(760) Cooling system: Heat rejection to Engine Coolant:kw(BTU/min):171(9700) Engine Water Flow:litre/min(gpm) 427(113) Raw Water Flow:litre/min(gpm)234(62) Pressure Cap Rating w/heat exchanger:kPa(PSI) 103(15) More Marine Cummins Engines Offered: NT855-M 240HP,NT855-M 270HP,NT855-M 300HP Marine CUMMINS Engine .

NT855-M 340HP,NT855-M350HP,NT855-M360HP Marine CUMMINS Engine . NT855-M 380HP,NT855-M 400HP Marine Cummins Engine . &&&&&&: 15PPM oily water separator 15ppm bilge alarm/bilge separator ODM system fresh water generator UV-Sterilizer Re-hardening water filter marine incinerator marine sewage treatment plant
