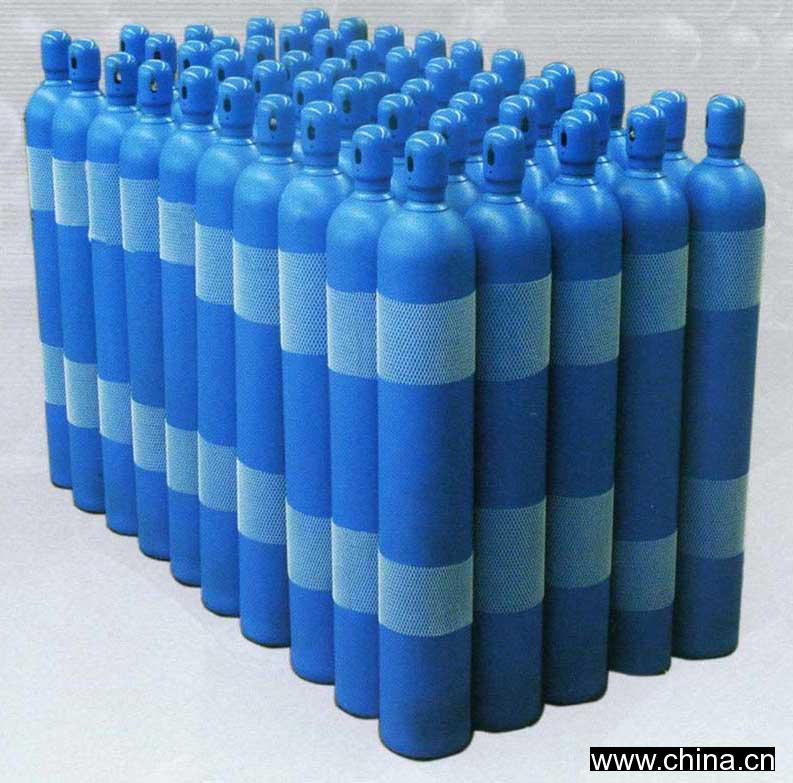

NGV Cylinder

Specifications

Origin: China (Mainland)

Request Quote

Quick answer

NGV Cylinder is a Natural Gas product. Key specs — Origin: China (Mainland).

Product Description

Model No.:ISO11439 Product

Origin:China Brand

Name:

Price Terms:

Payment Terms:

Certification: Description:Outside diameter Do: 232/267/279mm Water Capacity V: 20/28/30/40/45/50/60/70/80LHeight L :620/860/920/950/960/1080/1150/1210/1250/1350/1440/1480/ 1550/ 1630mm

Weight: 26.5/34/37/50.5/55.7/60.5/43/54/58/63/66/67.5/72.5/76/78/81.5/86.5/96.5kg Working pressure WP: 200bar Design wall thickness S: 5.2/5.7/6.1/6.4mm

Material: 34Cr Mo4/30Cr Mo
