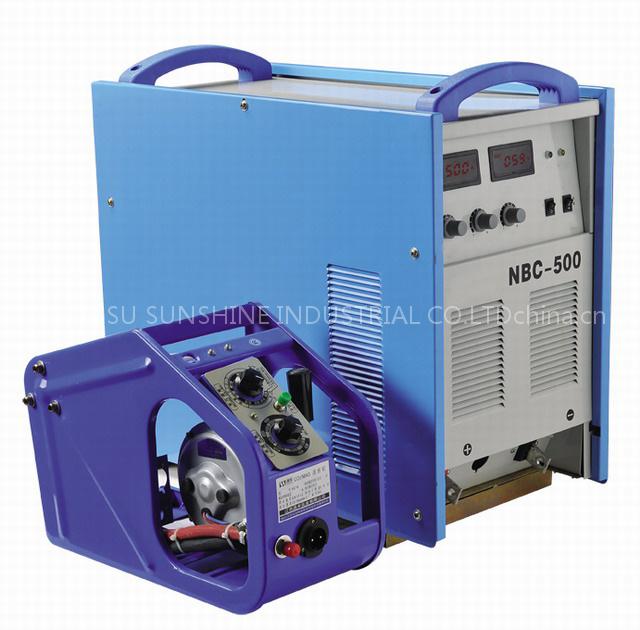

Name: NBC-500 gas shielded welder
Brand: JIANGSU SUNSHINE
SKU: NBC-500

NBC-500 gas shielded welder

Specifications

Product Description

1, Adopting high frequency inverter technique,high reliability,light in weight and energy saving.

2, Easy arc-starting,stable welding arc and easy control of weld puddle.

3, High duty cycle and continous welding in a long time.

4, Adopting passive power factor correction,and high in power factor.

5, Arc force adjusts with the length of welding cable,which can achieve remote welding.

NBC Series IGBT Inverter Gas Shielded Welder	NBC-350	NBC-500	NBC-630
Rated input voltage	380V	380V	380V
Rated input capacity	14KVA	25 KVA	37 KVA
Rated input current	25A	46 A	66 A
Voltage adjusting range	14-40V	17-50V	17-50V
Current adjusting range	60-350A	60-500A	60-630A
Welding wire	Ð¤0.8-Ð¤1.6	Ð¤1.0-Ð¤1.6	Ð¤1.0-Ð¤2.0
Duty cycle	60%	60%	60%
Full load efficiency	89%	89%	89%
Power factor	0.87	0.87	0.87
Weight	43KG	54KG	56KG
Overall dimension	575x325x585CM	650x330x580CM	650x330x580CM

NBC-500 gas shielded welder
