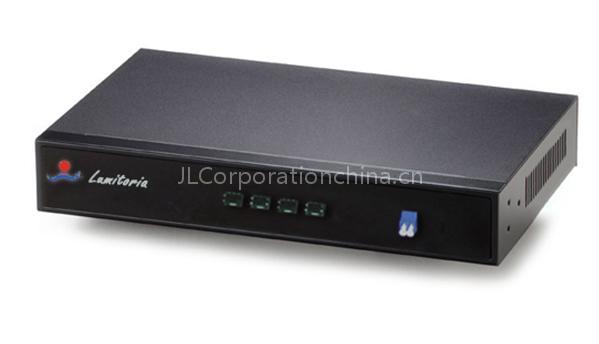

Multimedia CWDM/DWDM Converter is a Telecommunications product. Key specs — Origin: China.
Product Description
nbsp;Up to 16 multiplexed wavelengths and 40-Gbps total bandwidth in a single standard 1-U box
nbsp;Compatible with any data format, any fiber type, any port interface, and any data rate up to 2.5 Gbps per wavelength
Features
nbsp;Integrated wavelength conversion, wavelength mux/demux, and CWDM/DWDM transmission functionalities, all in the same box
Easy plug-and-play installation
nbsp;Compatible with Ethernet, SONET/SDH. Fiber Channel, ATM, etc
nbsp;Compatible with both single-mode and multimode fiber interfaces
nbsp;Over 100-km single-span transmission distance
nbsp;Optional TV port for TV/Data co-transmission
Specifications
Standard: IEEE802.3ab, IEEE802.3z
Wavelength Range: 850 – 1650 nm
Data Rate Range: 1.5 Mbps – 2.5 Gbps
Fiber Interface: LC, FC, SC
Single-Span Distance: 500 m -- 120 km
Fiber type: SMF/MMF
Data Format: SONET/SDH, ATM, FC, Ethernet
Power Supply: 110/220 VAC, 48 VDC
