Listing ID#10096271
ModelYT3201 & YT3202
CategoryOther Plastic & Rubber Machinery

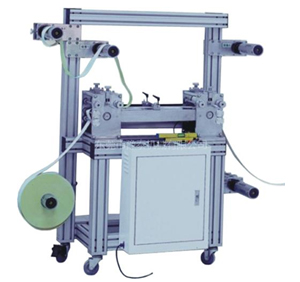

Multilayer Precision Compound Machine
Specifications
- Brand
- Yutai
- Origin
- China
Quick answer
Multilayer Precision Compound Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Yutai; Origin: China.
Product Description
Technical Parameter of Multilayer Precision Compound Machine:
| Model of Multilayer Precision Compound Machine | YT3201 | YT3202 |
| Compound width(mm) | 320mm(max) | 320mm(max) |
| Compound speed | 3-50m/min | 3-50m/min |
| Compound precision | <±015mm | <±01mm |
| Compound layer number | 4(max) | 5(max) |
| Dimension(LXWXH)(mm) | 1200x1100x1700 | 2000x800x1750 |
| Machine Weightkg | 200 | 400 |
| Input power | 0.7kw | 1kw |
| FOB Shen Zhen | ||
| FOB Shen Zhen (20''container) |
| Fetures of Multilayer Precision Compound Machine: | ||
| 1:The electronics tension control | ||
| 2Automatically stop when there is no material or material break off | ||
| 3:Can connect with other machine and work together | ||
| 4:Can horizontally and tinily adjust the position of the material | ||
| 5:Can compound several piece material at the same time | ||
| 6:Can optionally adjust the position of unwinding |
