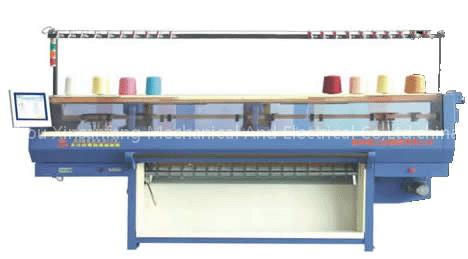

Multifunction Computerized Flat Knitting Machine

Mode of

ASGE653-72

Gauge

7.12.14 per inch

Knitting width

combine twin carriage-72''(183cm)*1 piece 1+1 system with tandem-drive 30''(76cm)*2 pieces

Speed of

knitting speed varies according to gauge and knitting condition,max 1.2m/sec,32 speed selection programmable command control

Needle bed

segment needle bed,replaceable segment 72''(183cm)

Knitting system

single frame head,two wreathe system

Compact

compound knitting cam system,each system can execute knit,tuck and meet 3 technique at the same
time

Transfer

compound knitting cam system,each system can be transfer from front to rear,rear to front and rear
simultaneously without direction
restriction,auto racking and auto reciever.

Stitch cam

each stitch setting is controlled by a step motor,it has 32 stitches of independent selection
and each of their ranges from 0 to 160 steps for knitting pattern

Needle selection

each system has a sets special solenoids.which can
be instaled or removed simply from the carriage and maintain easily

Yam carriers system

2*8 sets of yarn carries on 4 double side rails,switchable in any area within the knitting width

Sinker system

the press depth of diffrent material can be controlled by the steo motor

Racking

AC servo motor control,the proprammable racking position within 2 inches,each also having 1/4,1/2 and 3/4 micro adjusrtable by the step motor

Main take down

32 levels tensions changeable,zdjustable automatically on each level

Sub take down

device)

32 levels tensions changeable,zdjustable and close(option automatically on each level,automatically open

Carriage drive

Controlled by AC servo motor,tooth shape driving belt ,no oil need,8 speed selection and freely programmable

Stop motion

Yam broking,knot,preess off,needle break,over current,roll back,wrong racking,improper sinker,collide needle.excessive yam,and reaching on production target offer automatical stop

Data input

via keyboard or 3.5'' micro floppy diskette,a LCD display screen

Memory capacity

1024*4096 huge memory for the pattern length and width design

Language

LED indication English and chinese are standar version

Power

AC 3 phase 220V,electricity consumption 2.4KVA

Size(mm)

Length *width *height 2770*930*2000

To improve the products ,specifications be changed without notice
