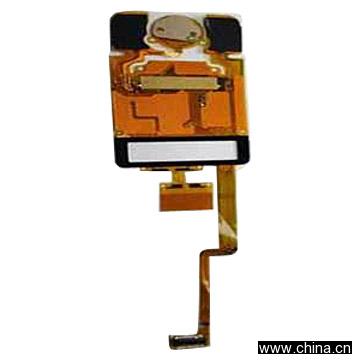

Multi-Layer FPC for Mobile Phone
Specifications
- Origin
- China (Mainland)
Multi-Layer FPC for Mobile Phone is a Multilayer PCB product. Key specs — Origin: China (Mainland).
Product Description
Model No.:FM-00222A Product Origin:China Brand Name:FASTO Price Terms:FOB Payment Terms: Certification:ISO9001, UL, SGS, RoHS Description:Features: 1) 6-layer FPC 2) Base material: Kapton3) Base copper thickness: 1/3oz. to 1oz.
4) Six layers: 0.55mm/0.022" 5) Max. panel size: 250 x 400mm 6) Min. hole diameter: 0.20mm 7) PTH hole tolerance: 0.05mm8) Blind or buried via: yes 9) Min. line width: 0.075mm/0.003" 10) Min. line spacing: 0.075mm/0.003" 11) Min. bonding pitch: 0.181mm/0.007" (center to center)12) Min.
SMT pitch: 0.40mm/0.016" (center to center) 13) Min. hole registration tolerance (NPTH): ±0.05mm 14) Min. hole registration tolerance (PTH): ±0.075mm 15) Min. pattern registration tolerance: ±0.05mm 16) Min. S/M registration tolerance (LPI): ±0.075mm 17) Min.
S/M bridge (LPI): 0.1mm 18) Plated gold thickness: 0.025μm - 1μm19) Surface treatment technology: electrolytic gold, electrolytic pure tin, OSP,immersion tin, selected OSP, peelable mask
