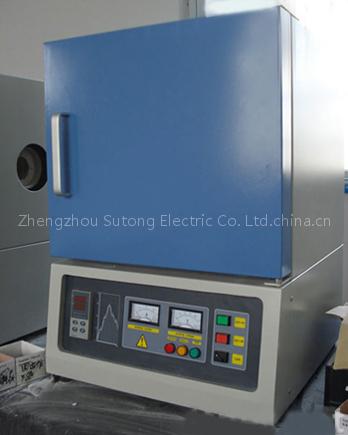

Name: Muffle Furnace
SKU: ST-1700M

ST-1700M is the most cost effective bench-top high temperature muffle furnace made by our furnace consists of high quality alumina fiber brick and MoSi2 heating elements with chamber of 8"x8"x8", and temperature is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy 1 â„ƒ and 30 segments programmable up to 1700â„ƒ or 3092 â„‰. It is an ideal tool for materials annealing and sintering in your research laboratory.

Standard or Stock Sizes:

Model Chamber size(WxHxD mm) & Max. Temperature

ST-1700M 150x150x150mm (6"x6"x6") 1700â„ƒ

ST -1700M 150x150x200mm (6"x6"x8") 1700â„ƒ

ST -1700M 200x200x200mm (8"x8"x8") 1700â„ƒ

ST -1700M 200x200x300mm (8"x8"x12") 1700â„ƒ

ST -1700M 250x250x300mm (10"x10"x12") 1700â„ƒ

ST -1700M 300x300x400mm (12"x12"x16") 1700â„ƒ

ST -1700M 350x350x400mm (14"x14"x16") 1700â„ƒ

ST -1700M 400x400x400mm (16"x16"x16")1700â„ƒ

ST -1700M 500x500x500mm (20"x20"x20") 1700â„ƒ
