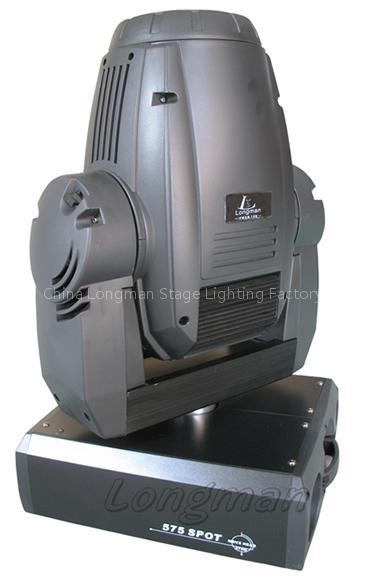

Name: Moving Head
Brand: Longman
SKU: Loby 700

Lamp	HMI 575W
Power consumption	700W Over heat and high voltage protection Modular design for easy maintenance Electronic reposition correction 15 high quality new motors 8 main colors + 8 mixed colors with rainbow effect Vector mode Gobo index
2 gobo wheels	6 static gobos + 5 rotating gobos 1 glass gobo 3-facet prism 16 bit Pan / Tilt fine adjustment Shutter / strobe, max. 10 flashes per second
DMX channels	18
Ch 1	Iris / Reset
Ch 2	Color wheel, 7 colors + open, 8 main colors + 8 mixed
Ch 3	Dimmer, 0 % - 100%
Ch 4	Shutter / strobe, 1 - 10 f.p.s.
Ch 5	Pan max. 540 degrees
Ch 6	Tilt max. 250 degrees
Ch 7	16 bit Pan fine
Ch 8	16 bit Tilt fine
Ch 9	Pan / Tilt speed adjustment
Ch 10	Vector mode, stop prism, color / gobo whhel, Pan / Tile, all or no of them
Ch 11	Static Gobo wheel, 5 metal gobo + open + rainbow + gobo swing
Ch 12	Rotating Gobo wheel, 3 metal gobo + 1 glass gobo + open + gobo swing
Ch 13	Gobo rotation, CW and CCW, slow to fast
Ch 14	Rotating gobo position index
Ch 15	Focus
Ch 16	Color wheel, C + M + Y + CTC glass + open + Focus
Ch 17	3 - facet Prism
Ch 18	Prism rotation, CW and CCW, slow to fast

Shipping information
Dimension	463 x 365 x 697mm
Carton size	520 x 520 x 770mm
Flight case size	580x440x880mm
Net weight	41kgs
Gross weight	45kgs
