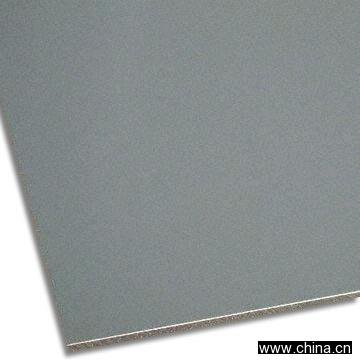

Mouse Gray Aluminum Plastic Composite Panel

Model No.:TH115 Product

Origin:China Brand

Name:Sky Rainbow

Price Terms Payment Terms:TT, L/C at sight

Certification: Description

Product Name: Mouse Gray Aluminum Plastic Composite Panel

Model Number: TH115

Place of Origin: China Key Specifications and Special

Features: 1)

Standard: according to GB/T 17748-1999 standard 2)

Material: a) Front: aluminum alloy sheet coated with fluoro-carbon resin (PVDF) and polyester resin (PE) roasting painting b) Core: nontoxic polyethylene c) Back: aluminum alloy sheet coated with polyester resin painting d) Surface finish: treated with PVDF and PE resin rolling roasting coating d) Surface coating thickness: 30um e) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.45mm, 0.5mm3)

Dimensions: a)

Thickness: 3mm, 4mm b)

Width: 1220mm c)

Length: 2440mm, 3050mm, 3200mm (max: 5 meter) d)

Weight: 5.5kg/sqm based on 4mm thickness e) Standard size: 1220 x 2440mm f) Qty/20'

FCL: 4mm/800pcs, Qty/20'

FCL: 3mm/1000pcs g) Nonstandard sizes are available according to requirement

Features: 1) Light weight, flat surface and high strength 2) Excellent heat insulation, sound insulation, fire-resistance, acid-resistance, alkali-resistance, weatherproofness and non-resonance 3) Various uniform colors 4) Can be easily processed and quickly installed5) Bright, elegant and magnificent, fit for various designs 6) Hylar 5000 PVDF resin features strong chemical resistance, unique colors can be easily maintained

Applications: 1) May be widely used in galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants and apartments 2) An ideal decorative materials for buildings: a) Outer and inner walls b) Kitchen cabinets, billboards, signboards, tunnels, subway interiors c) Ceilings, eaves, galleries, balconies, partitions, interior decorations d) Telephone booths, vehicle bodies, yachts, industrial usage, etc.
