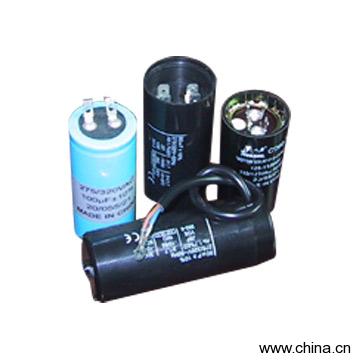

Motor Starting Capacitor is a Capacitors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:CD60 Product
Origin:China Brand
Name:
Price Terms:
Payment Terms:
Certification: Description:
Specifications:1) Adapts to single-phase asynchronous motor and three-phase asynchronousmotor, which is supplied with single-phase power and the frequecy is blew 100Hz2) Specially used for supplying leading current for electromotor, and then theelectromotor is actuated with the adequate moment consequently3) When the electromotor runs smoothly, the capacitor will disconnect from thecircuit4) The product possesses stable capacity and long relative runtime Service conditions:1) Altitude: the installing and running area should below 2,000m2)
Temperature: the service temperature of capacitor is-25~+55oC,-10~+70oC3) Humidity: 21D4) Dirtiness: the installing and running area should be level 15) The residual voltage in service: under 10% of rated voltage Technical indicators:1) Rated voltage: 16~500V2) Rated frequency: 50/60Hz3) Insulation: between terminal 1.2Un, 2 seconds, none over; between pole andshell, 2kV, 2 seconds, none over4) Capacity range: 20~1000uF5) Tangent of loss angle: less than 0.156) Outlet line: the section area is greater than 0.5mm7) Operation mode: intermittent operation8)
Standard: complied with GB/T8596-1997
Features:1) Small size big capacity, and stable running2) Quite small leakage current, small capacity change, and credible security3) Single product could be made to very big capacity, and the useable range is moreextensive
