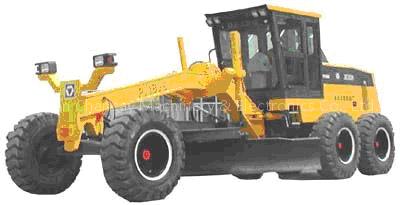

Motor Grader PY Series

Distance to front axle : 1550mm
Max.digging-in Depth: 110mm
Max.raising Height: 500mm
Ripping width: 2000mm
Max.digging depth for ripper: 315mm
No. of teeth: 5
Max.raising height for
ripper: 350mm

Model: PY165G
Ending model: Shanghai diesel engine 6135K-10c
Rated power/rated speed: 121kw(165HP)/2200rpm
Overall dimensions(st): 9313*2601*280mm
Operating Weight: 15400kg
Module weight on front wheels: 4466kg
Module weight on rear wheels:10934kg
Tires: 17.5-25 RP12
Min. clearance: 430mm
Distance between front and rear wheels : 6266mm
Distance between middle and rear wheels: 1542mm
Forward Speed: 5,8,11,19,23,37km/h
Reverse Speed: 5,11,23km/h
Max.tractive Force: 80KN
Max.gradeability: 20
Tire expansion Pressure: 2.6bar
Pressure of working system: 18MPa
Pressure of gear box: 1.3-1.5Mpa(13-15kg/cm2)Max.steering
anglefor front wheel: left, right each 45o
Max.decline angle for front wheel: 17o
Max.swing angle for front axle: ±5o
Chassis steering angle: Left
and Right, each 25o
Min.turning Radius: 7.8m
Moldboard
Max.raising height: 460mm
Max.blade cutting depth: 500mm
Lengt*Curved height: 3965*10mm
Cooling liquid: 150L
Fuel tank: 220L
Engine: 20L
Gear box: 26L
Total capacity
of balance box: 46L
Driving axle: 28L
Hydraulic oil: 110L
Turbo box: 2.5L

Model: PY180G
Ending model: D6114ZG31Aa
Rated power/rated speed: 132kw(180HP)/2300rpm
Overall dimensions(st): 9313*2601*280mm
Operating Weight: 15400kg
Module weight on front wheels: 4466kg
Module weight on rear wheels:10934kg
Tires: 17.5-25 RP12
Min. clearance: 430mm
Distance between front and rear wheels : 6266mm
Distance between middle and rear wheels: 1542mm
Forward Speed: 5,8.5,11,19,23,38.5km/h
Reverse Speed: 5,11,23km/h
Max.tractive Force: 80KN
Max.gradeability: 20
Tire expansion Pressure: 2.6bar
Pressure of working system: 18MPa
Pressure of gear box: 1.3-1.5Mpa(13-15kg/cm2)
Max.steering angle for front wheel: Right and left each45o
Max.decline angle for front wheel: 17o
Max.swing angle for front axle: ±5o
Chassis steering angle: Left and
Right, each 25o
Min.turning Radius: 7.8m
etc.
