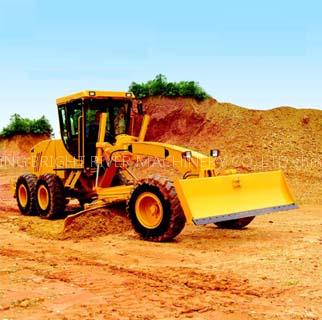

Motor Grader 416

Feature Base operating weight (standard equipment) Includes all operating fluids and operator Total 14100kg On front wheels 3700kg On rear wheels 10400kg Weight adjustments for various options are listed Working capacity (standard equipment) Maximum draw pull 74.4kN Cutting pressure 8800kg Engine Cummins QSB5.9-C173 Rated power 129kW(173hp) Peak torque Torque rise 42.6% Cylinders-bore*stroke 6-102 x 120mm Displacement 5.9L Transmission ZF 6WG200 Type: counter shaft-type power shift, semi-automatic electrical hydraulic shifting control Converter: single-stage, single-phase, three elements torque converter Travel speed (km/h) Gear1 Gear2 Gear3 Gear4 Gear5 Gear6 Forward 0-6.0 0-10.4 0-12.4 0-21 0-26.2 0-42.8 Reverse 0-6.0 0-12.4 0-26.2 Differential & final drive Self-locking unlocking “No-spin” differential; the rear axle shell is hardened and is designed all-float.

Brakes Service: full hydraulic shoe brake, operating by foot Parking: Electromagnetic control, hydraulic release, disc type Tandem drive Height 552mm Width 210mm Thickness inner wall: 20mm outer wall: 20mm Center distance 1553mm Oscillating angle +15° Tires 17.5-25 Front axles all welded steel-frame structure Wheel lean angle Left/right 17° Oscillating up/down 15° Ground clearance 645mm Steering Hydraulic power front wheel steering system Min. turning radius 8234mm Steering angle +45° Frame articulation angle 20° Hydraulics Working pump Variable displacement piston pump Max. pressure 21Mpa Output /min Circle Diameter 1230mm Thickness 90mm Articulated structure Two hydraulic cylinders actuate frame to articulate 20°left or right Moldboard Length 3960mm Height (chord) 650mm Blade lift range Blade slide right: 725mm left:675mm Max. sloping angle 90° Blade ground clearance 450mm Blade cutting depth 555mm Blade tilt range 40°-70° Capacities Fuel tank 270L Hydraulic tank 100L Transmission 45L Crankcase 22L Equipment ●Standard ▲Optional ●Cummins QSB5.9-173 ●ZF6WG200 transmission ●Rockwell ”No.

Spin” differential ●Air conditioner ●Rops & fops cab ●17.5-2.5PR14(G-2) tires ▲Rear Ripper ▲ Dozer
