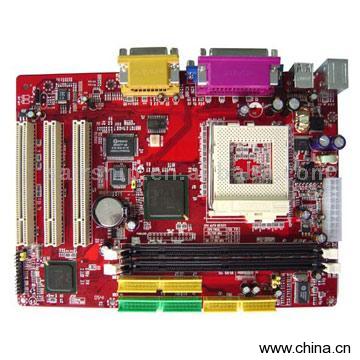

Motherboard is a Pneumatic Parts product. Key specs — Origin: China (Mainland).
Product Description
Model No.:810T Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Product Name: MotherboardModel Number: 810TPlace of Origin: ChinaSpecifications:1) Intel 810 + 82801AA chipset group2) Supports socket 370 for Intel Coppermine/Tualatin 3) VGA on board4) USB 1.15) AC97 audio6) 133MHz FSB7) Chipset:a) Integrated graphics controllerb) SDRAM memory independent of system BUS c) 2 full IDE channels, up to ATA66 d) Low pin count interface for SIODetails:1) FSB supports 66 / 100 / 133MHz2) Main memory:a) Supports two 168-pin DIMM sockets b) Supports a maximum memory size of 256MB (64Mbit technology) or 512MB (128Mbit technology) SDRAM3) Slots:a) One AMR (Audio Modem Riser) and one PTI b) Three 32-bit Master PCI BUS slotsc) Support 3.3V / 5V PCI BUS interface4) On-board IDE:a) IDE controller on the ICH chipset provides IDE HDD / CD-ROM with PIO, BUS master, and ultra DMA 33 / 66 operation modesb) Can connect up to four IDE devices6) Audio:a) ICH chip integratedb) Supports 2 channel audio 7) Peripherals:a) 1 floppy port supports 2 FDD with 360K / 720K / 1.2M / 1.44M / 2.88Mbytesb) 2-serial port.
(COMA + COMB)c) 1 parallel port supports SPP / EPP / ECP moded) 2 USB ports and 2 USB connectorse) 1 x IrDA connector for SIRf) 1 VGA port8) Power Management:a) Supports ACPI specification and OS directed power managementb) Supports ACPI STR (suspend to RAM) functionc) Wake-on events include1) Wake-on PS /2 keyboard / mouse 2) Wake-on USB keyboard / mouse3) Wake-on ring (external modem4) Wake-on LAN5) RTC time to power-on the system6) AC power failure recover
